China wholesale deburring abrasive wire grinding wheel brush

Short Description:

We are manufacturer of Quality Grinding wheel Brushes that are widely used for cleaning purposes in several industrial machines. All our brushes are manufactured using high grade raw material and latest technology to ensure that these meet with international quality standards & norms. In addition to this, our brushes are available in the market in several sizes, designs and colors to fulfill the demands of customers. We also provide customization as per the specifications laid down by the customers.


Product Detail

Product Tags

Introduction:

We are manufacturer of Quality Grinding wheel Brushes that are widely used for cleaning purposes in several industrial machines. All our brushes are manufactured using high grade raw material and latest technology to ensure that these meet with international quality standards & norms. In addition to this, our brushes are available in the market in several sizes, designs and colors to fulfill the demands of customers. We also provide customization as per the specifications laid down by the customers.

Application:

deburring after machining
Milling mark removal
Rust removal
Polishing ferrous and non-ferrous parts
Light cleaning
weld and paint removal
Edge Radiusing
Surface Enhancement with improvement in Ra value

Feature:

Brush diameter : Standard 15 mm to 250mm and more
Bristle height: Standard 5mm, 8mm, 10mm, 15mm & 20mm and more
Raw material: Silicon carbide, Green Silicon, Ceramic, Aluminum Oxide, Diamond
Grits: Standard 60,80,120,180,240,320,500,600,800 & 1000#
Wire diameter: 0.2mm,0.4mm, 0.6mm,0.8mm,1.0mm,1.1mm,1.2mm,1.5mm, etc.
Our grinding wheel are available with shank, without shank, straw hat type. applications, convenient to cooperate with the use of hand-held power tools, CNC, manipulator.
The wheel brush is the most suitable tool for removing burrs after machining of mechanical parts. It can be installed on sand grinders, angle grinders, and pneumatic tools for burr removal.
Wheel Brush Drill Attachment Attachments provide lighter brushing action and Superior finish when cleaning, removing rust and paint, smoothing, Cleaning fettling from cast seams, light Deburring. They are ideal for cleaning polishing and finishing of joints/weld joints or corners and areas that are hard to reach. The standard 6mm shaft attachment makes it an easy to use product with any hand drill.
Non-standard customized brushes are possible with all different diameter, bristle heights,
raw-material, grits & combination with desired bristle height.
The choice of bristles depends on the substrate being machined, the amount of burrs and the final finishing requirements.

Model Parameters

No Products Shank diamter (mm) Brush diameter (mm) Wire height (mm) Wire diameter (mm) Grit Brush material Max. spend (RMP)

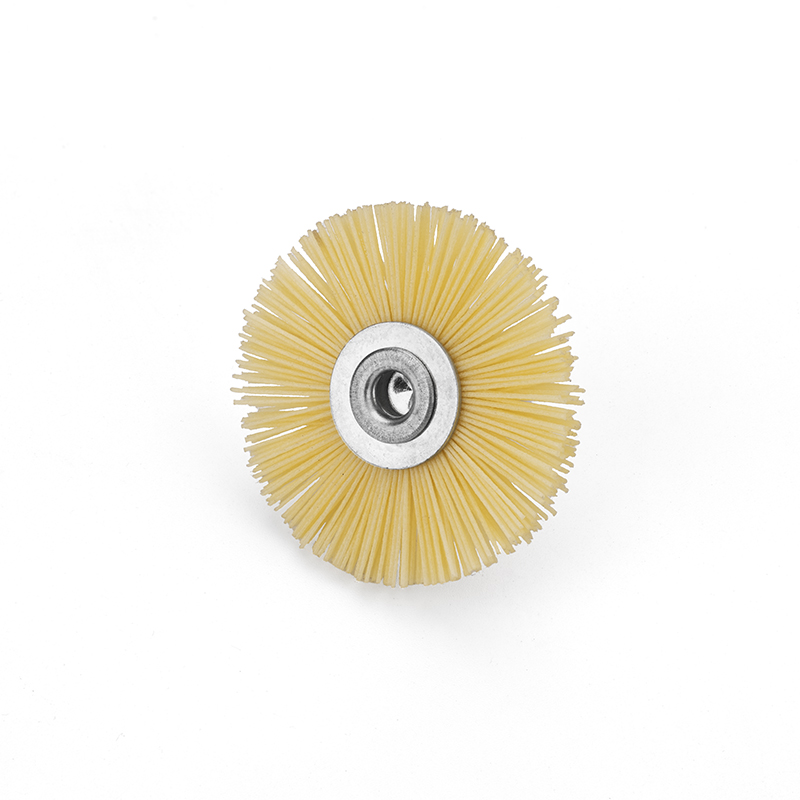

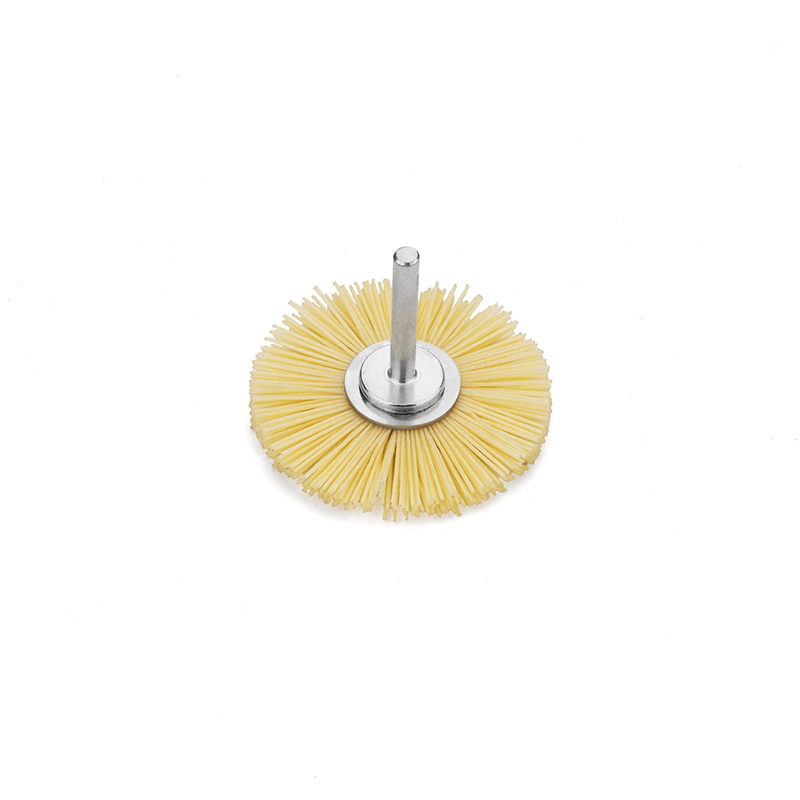

1 S6D50d20T10 6 50 10 0.40 240# Yellow ceramic 6000

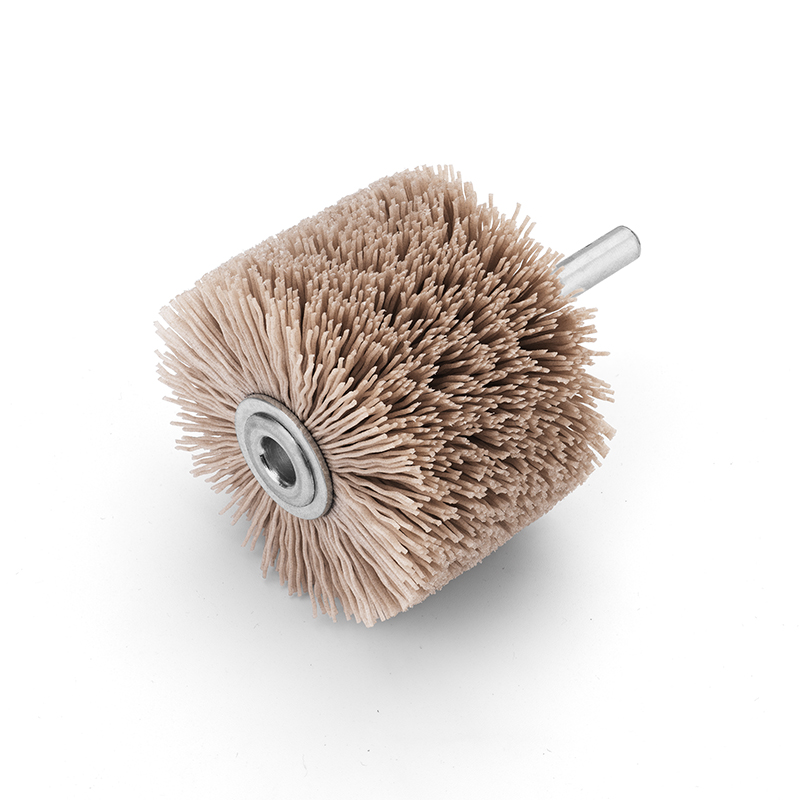

2 S6D55d20T40 6 55 40 0.60 320# Alumina 5000

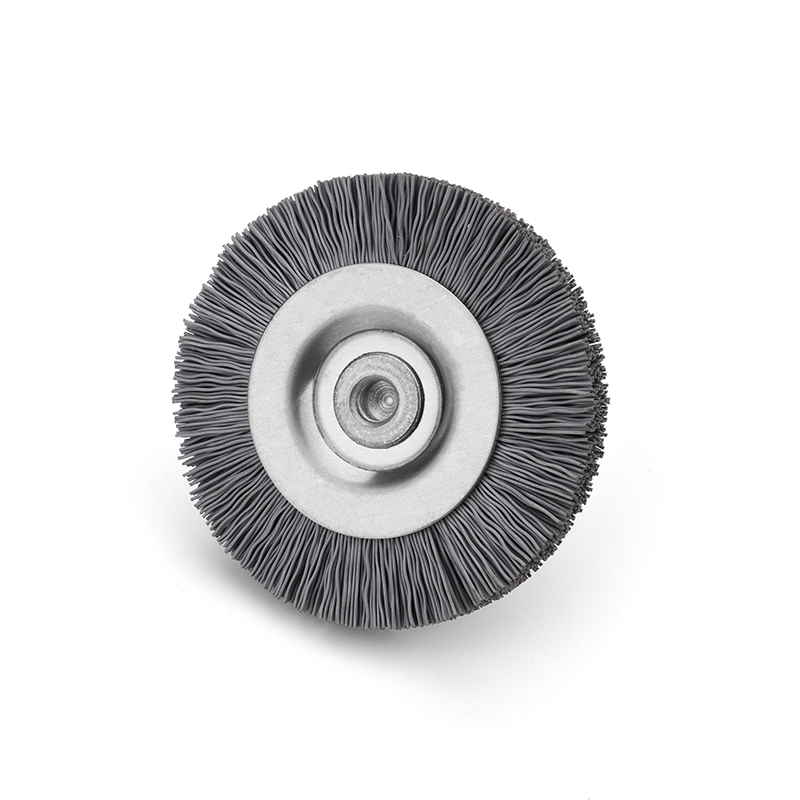

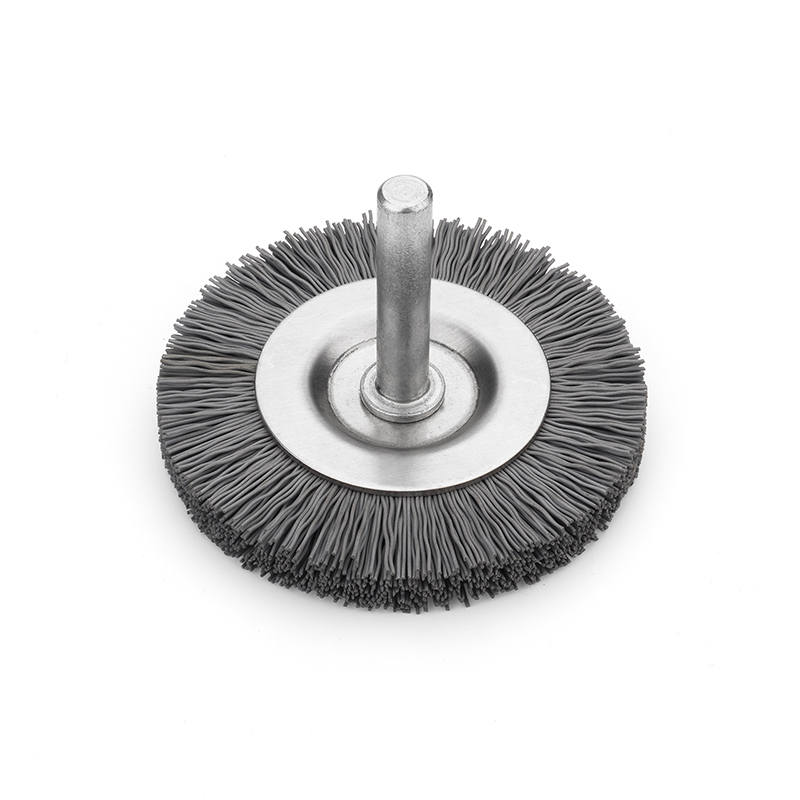

3 S8D75d45T8 8 75 8 0.50 500# Silicon carbide 6000

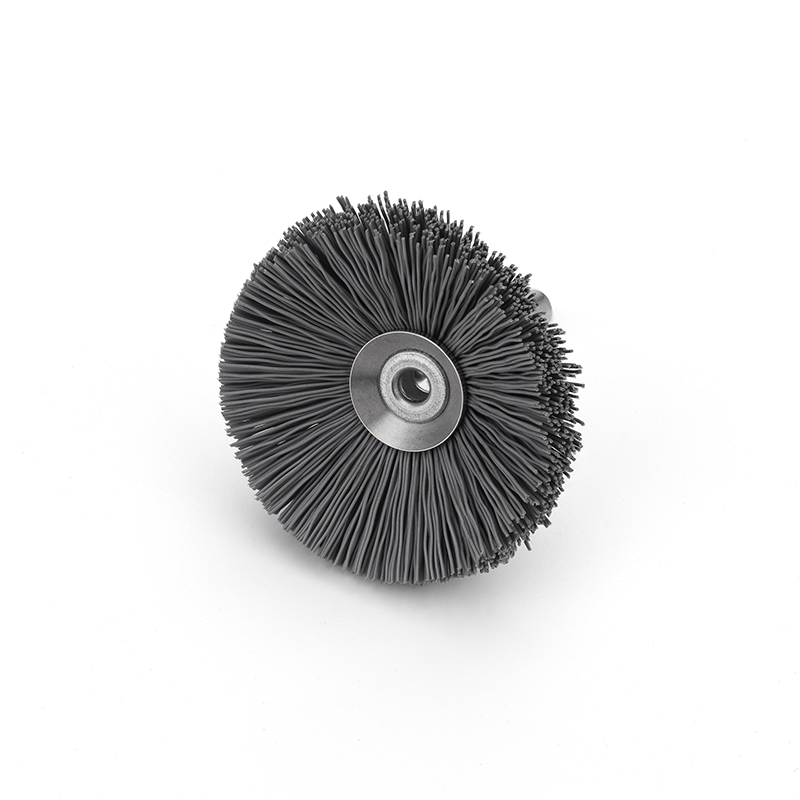

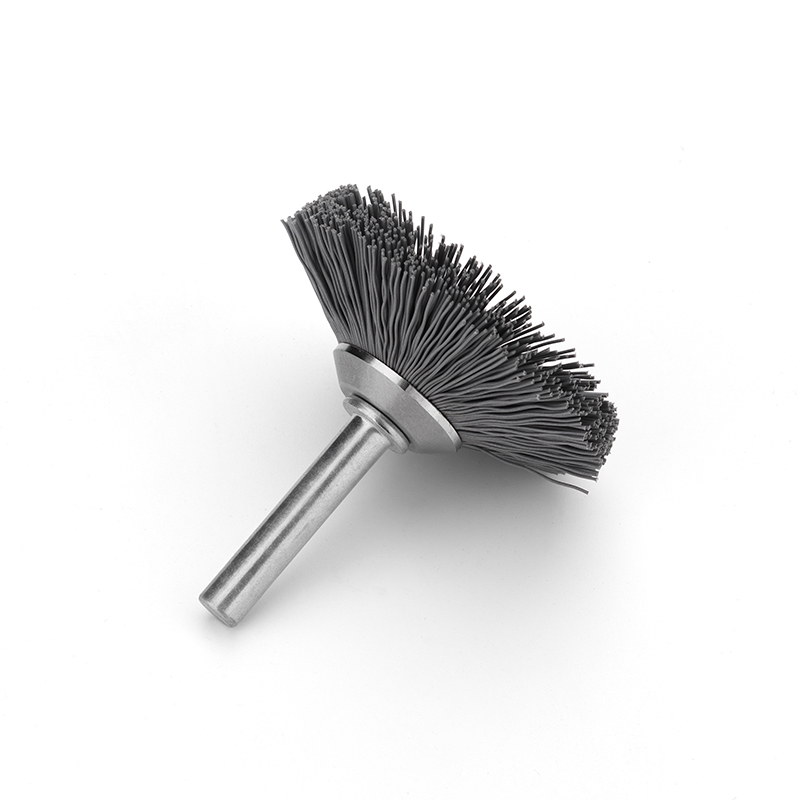

4 S6D50T17 6 50 17 0.30 240# Silicon carbide 6000

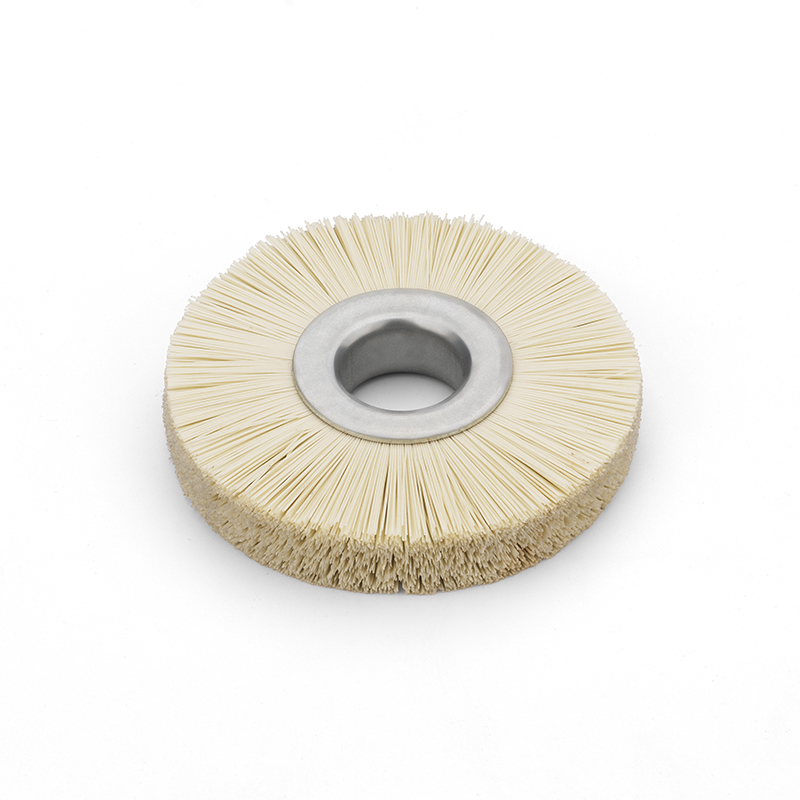

5 65*16*10 / 65 16 0.30 800# Diamond 5000
