Factory Wholesale Good quality Hot products with competitive prices tools jewelry Radial Bristle disc

Short Description:

Excellent chip design,can go deep into the gap or groove of the complex structure of the workpiece to play the role, more suitable for the arc or corner parts of the grinding process. And can independently combine the required thickness, fiexibility. Not only suitable for common electric and pneumatic tools, but also especially suitable for automatic production lines and equipment configuration.


Product Detail

Product Tags

Introduction:

Excellent chip design,can go deep into the gap or groove of the complex structure of the workpiece to play the role, more suitable for the arc or corner parts of the grinding process. And can independently combine the required thickness, fiexibility. Not only suitable for common electric and pneumatic tools, but also especially suitable for automatic production lines and equipment configuration.

Application:

Deburking Radial Bristle Disc, using proprietary Ceramic Abrasive Grain and molded, flexible bristles, provides more surface contact than wire brushes and maintains abrasive property throughout the life of the disc. This fast-running disc removes paint, stains, adhesives, weld burns, rust, heavy oxides, and surface contaminants from large areas.
Which can easily handle all kinds of complicated workpiece, remove burr quickly and efficiently, and achieve ideal surface effect. Among them, Sand wire wheel suitable for the semiconductor industry specific specifications, products do not cantain silicon oil.
Proprietary Ceramic Abrasive Grain provides aggressive cutting and consistent finish quality throughout the life of the disc
Flexible bristles require less pressure than wire brushes and conform to contours, even on complex parts
Bristle spacing is ideal for coating removal and other high-loading substances
Contains no wire filaments for improved safety
Do not damage the metal, reduce the cost of rework, Save Time
Reduce Heat and protect the jewelry

Feature:

We have more size options, more complete colors, and reasonable prices, because we are the production factory。

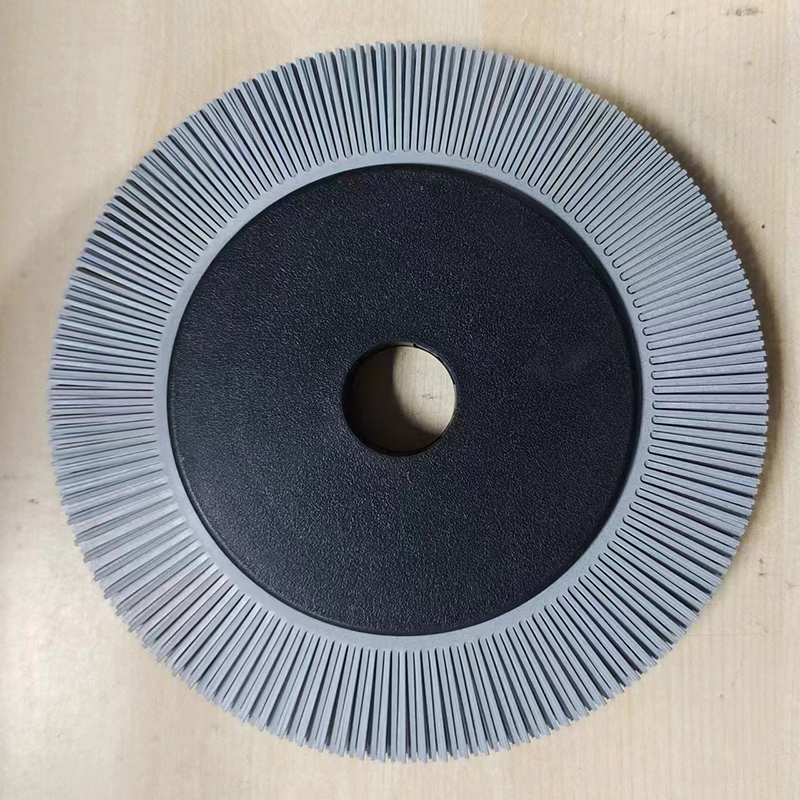

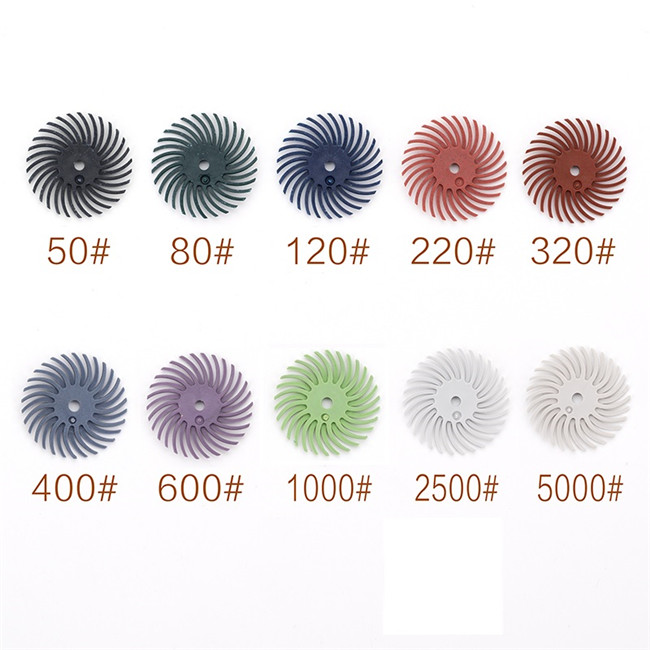

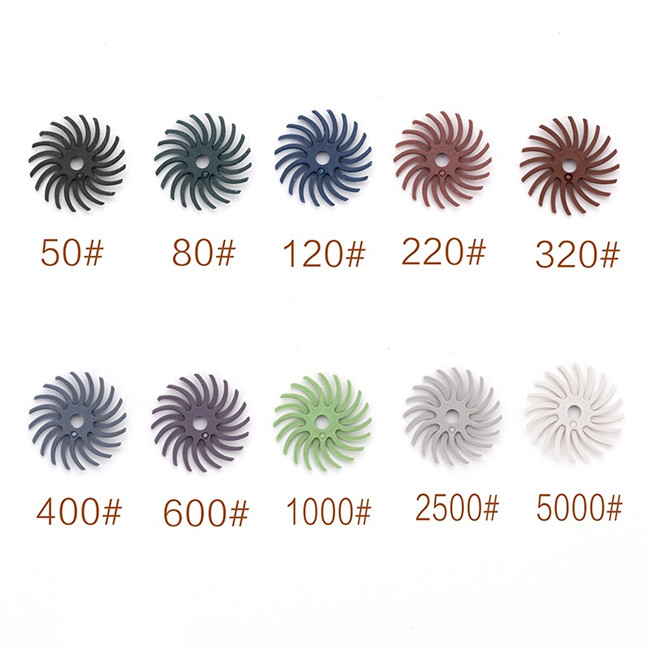

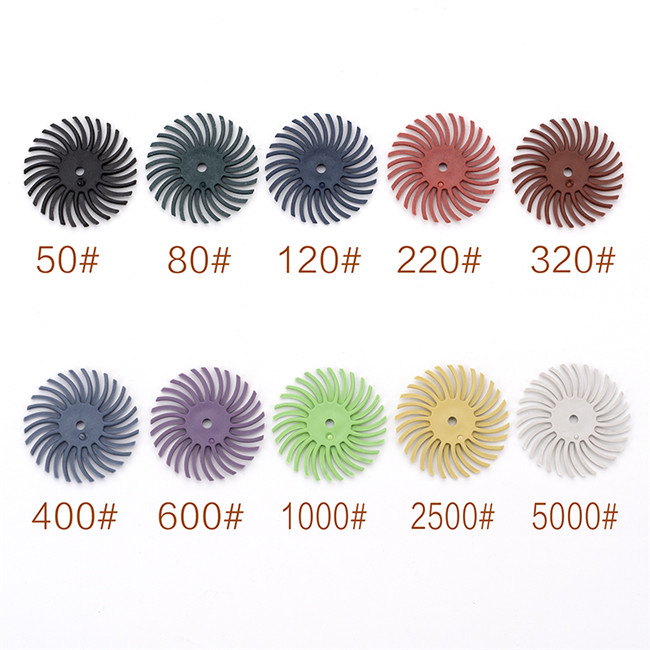

The specification of bristle discs are D15mm, D20mm, 1”, D33, 2”,3”, 4”, 6”,8”; Besides 3” and 4” also have straight wire specification, which can cooperate with the equipment of directional ratation. Provides a variety of grits to meet different requirements from 50#/80#/120#/220#/320#/400#/600#/1000#/2500#/5000#。
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.

Grade: Function:
DIY, Industrial Polishing
Type: Item name:
Polishing Brush Radial Bristle Disc
Place of Origin: Grits:
Guangdong, China 50#, 80#,120#,220#,320#,400#,600#,1000#,2500#,5000#
Brand Name: Application:
Deburking rust-removal,oxide layer, stain removal
Brush Material: Usage:
Abrasives Jewelry Polishing &Rotary Tools & Accessories

Model Parameters

No Products Size Outer Dia. (mm) Hole Dia. (mm) Thickness (mm) Max. spend (RPM) Set/Ctn Supply Ability
(per Month)
1 DB15 D15 15 2.2 1.1 20000 200 100000
2 DB20 D20 20 2.2 1.1 20000 200 100000

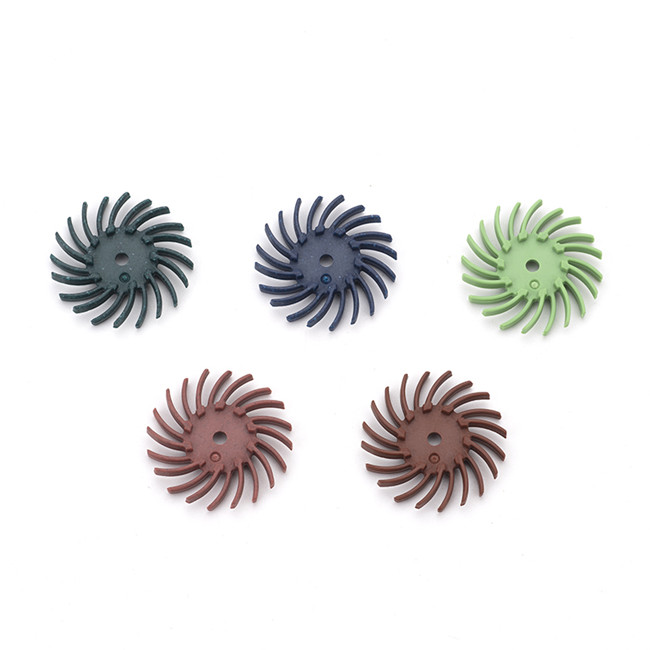

3 DB20-A D20 20-A 2.2 3 20000 200 100000

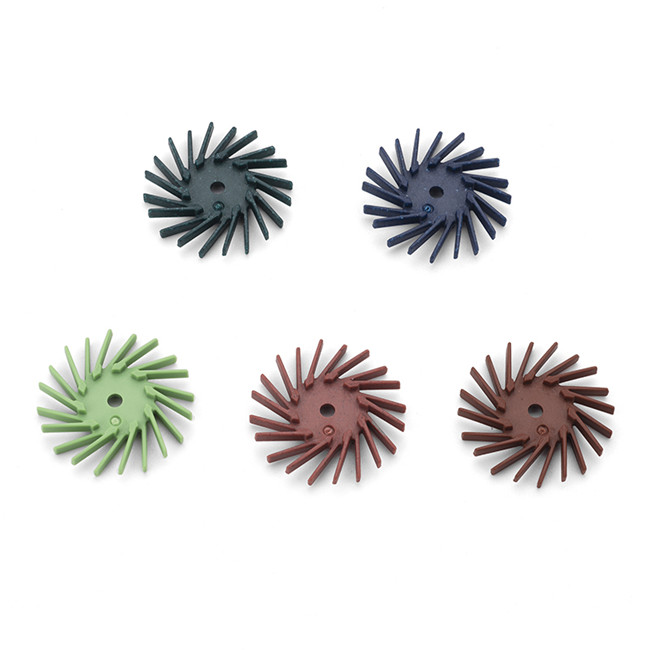

4 DB20-B D20 20-B 2.2 3 20000 200 100000

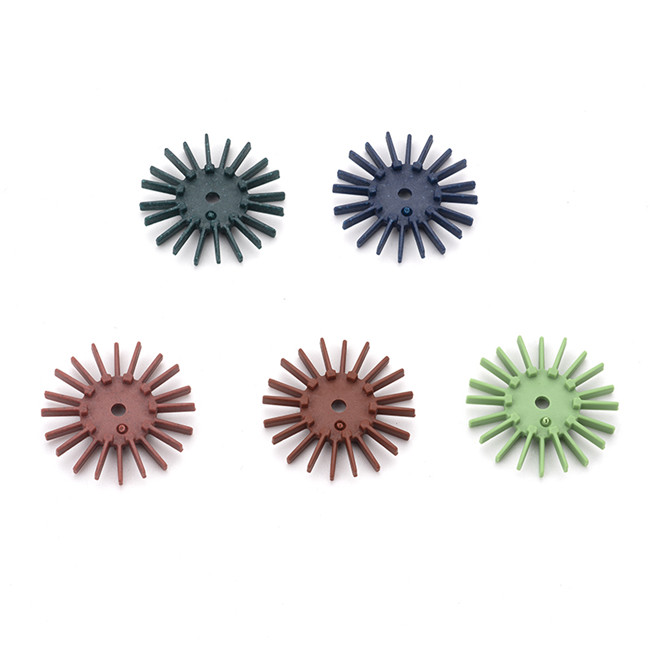

5 DB20-C D20 20-C 2.2 3 20000 200 100000
6 DB20-D D20 20-D 2.2 3 20000 200 100000

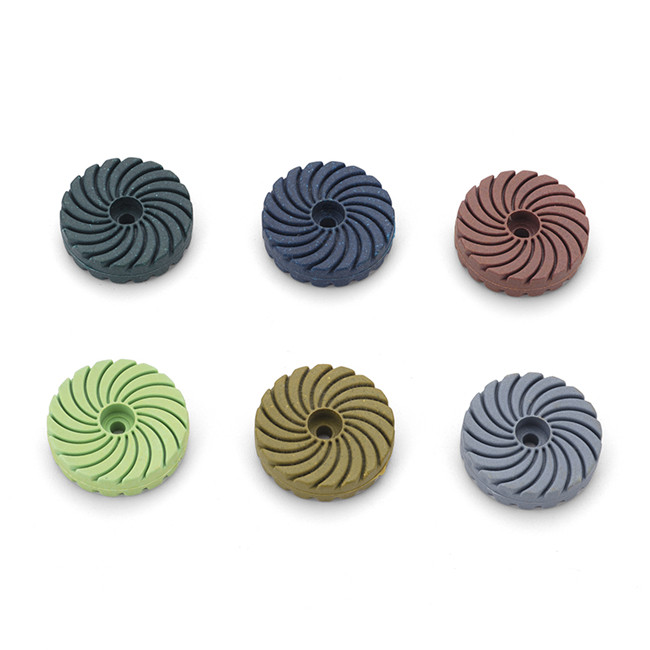

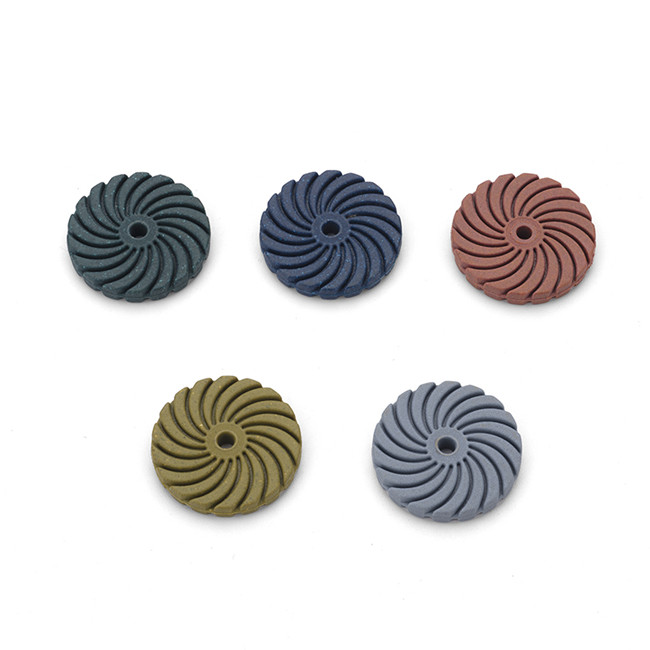

7 DB20-1 D20 20-1 2.2 3 20000 200 100000
8 DB20-2 D20 20-2 2.2 5 20000 200 100000
9 DB25 1inch 25.4 2.2 1.6 20000 200 100000

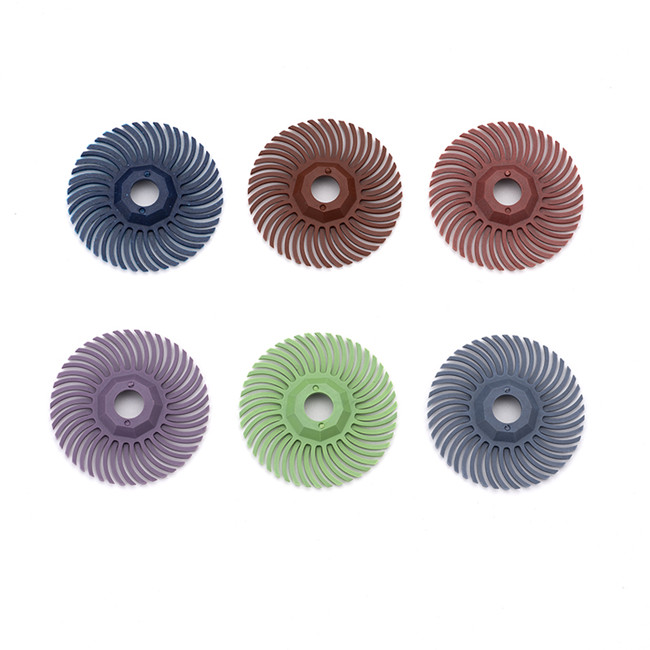

10 DB33-A D33 33 6 1.6 20000 100 100000

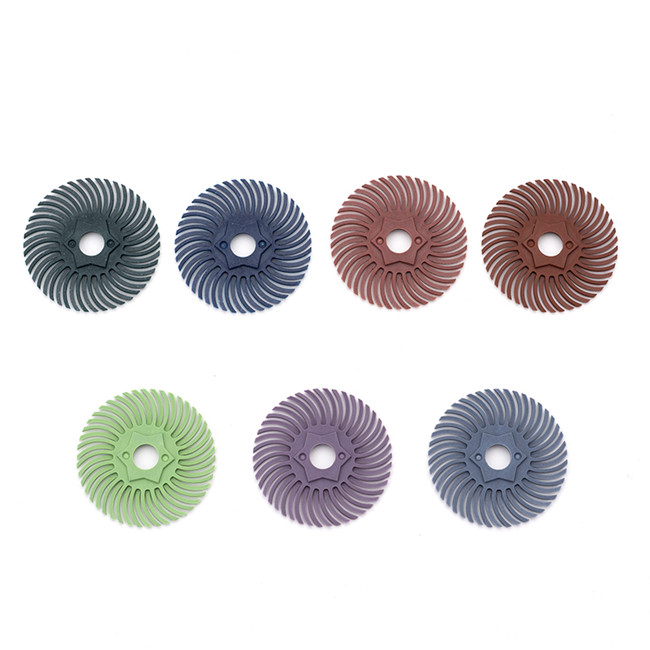

11 DB33-B D33 33 6 1.6 10000 100 100000

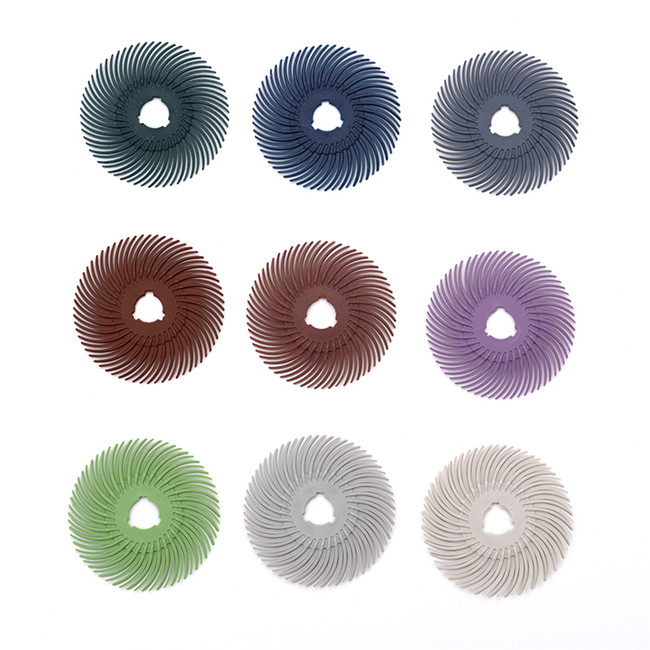

12 DB50 2inch 50 10 1.2 10000 50 60000

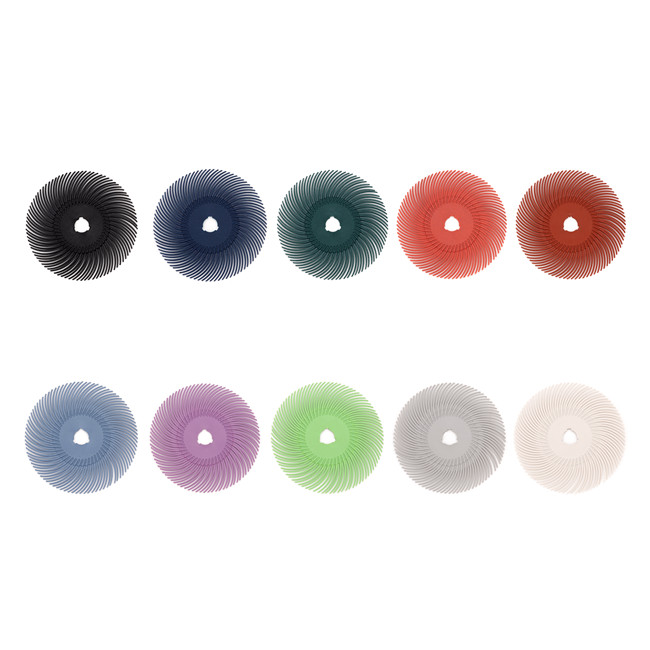

13 DB76 3inch 76 10 2.1 10000 50 60000

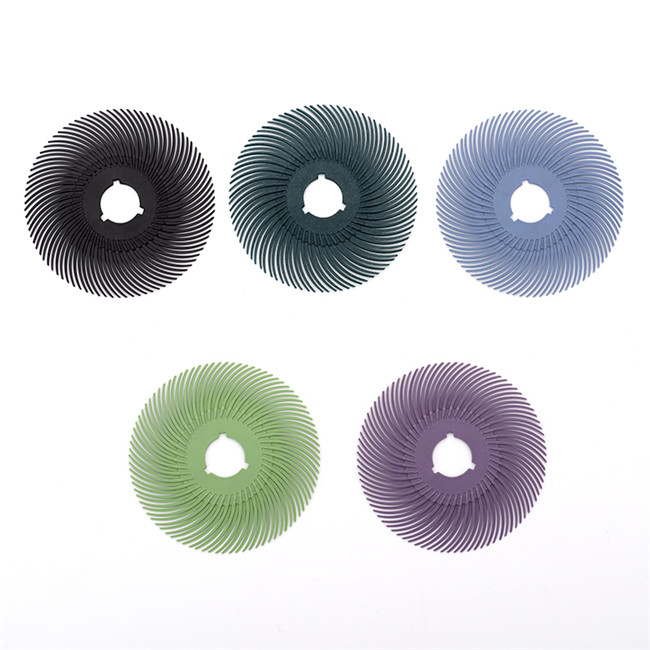

14 DB76-A 3inch 76 10 1.2 10000 50 60000

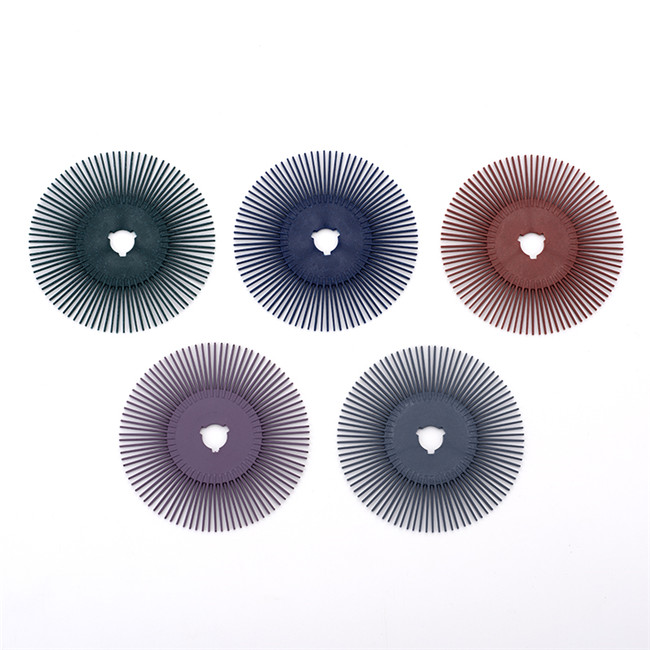

15 DB76-B 3inch 76 16 1.2 10000 50 60000

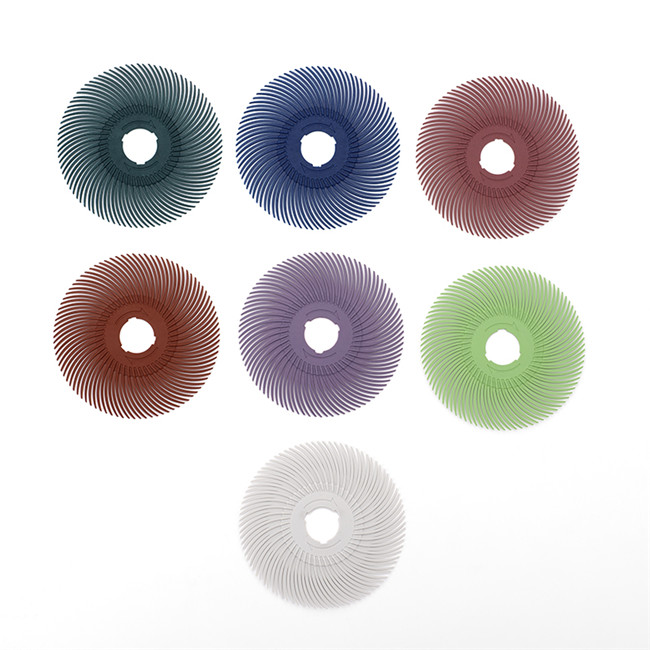

16 DB96 4inch 96 20 2.3 6000 50 60000

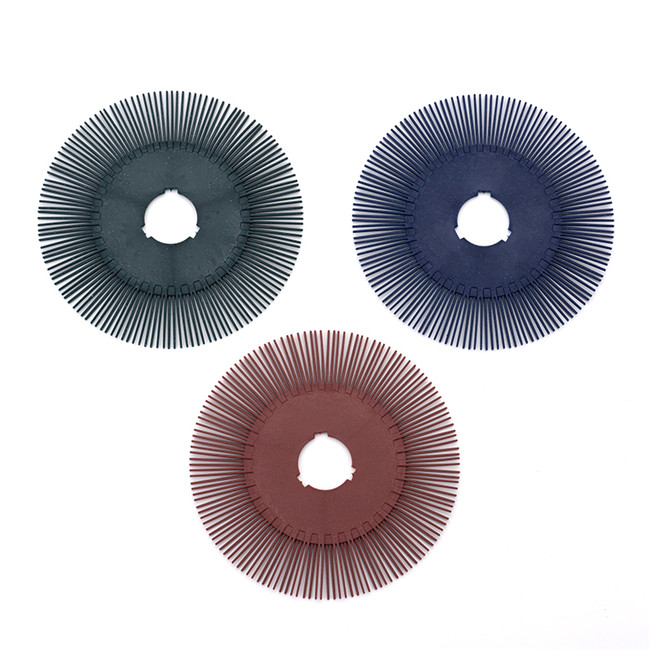

17 DB96-A 4inch 96 20 1.2 6000 50 60000

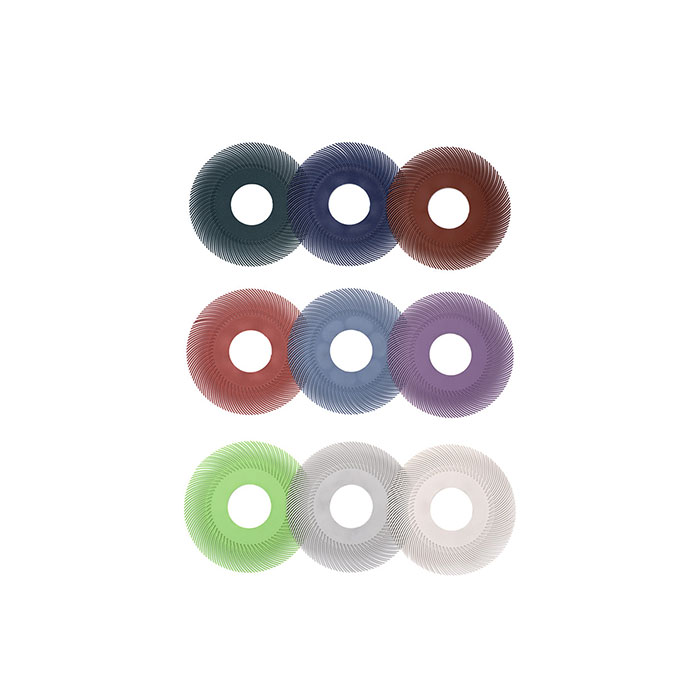

18 DB150 6inch 150 50 1.6 5000 50 30000

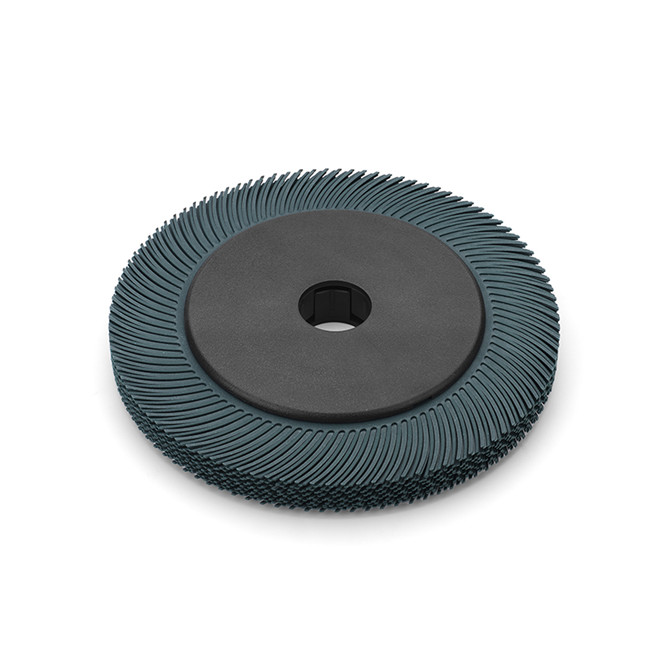

19 DB200 8inch 200 76 1.8 2000 50 30000
20 DB200-A 8inch 200 76 1.8 2000 50 30000

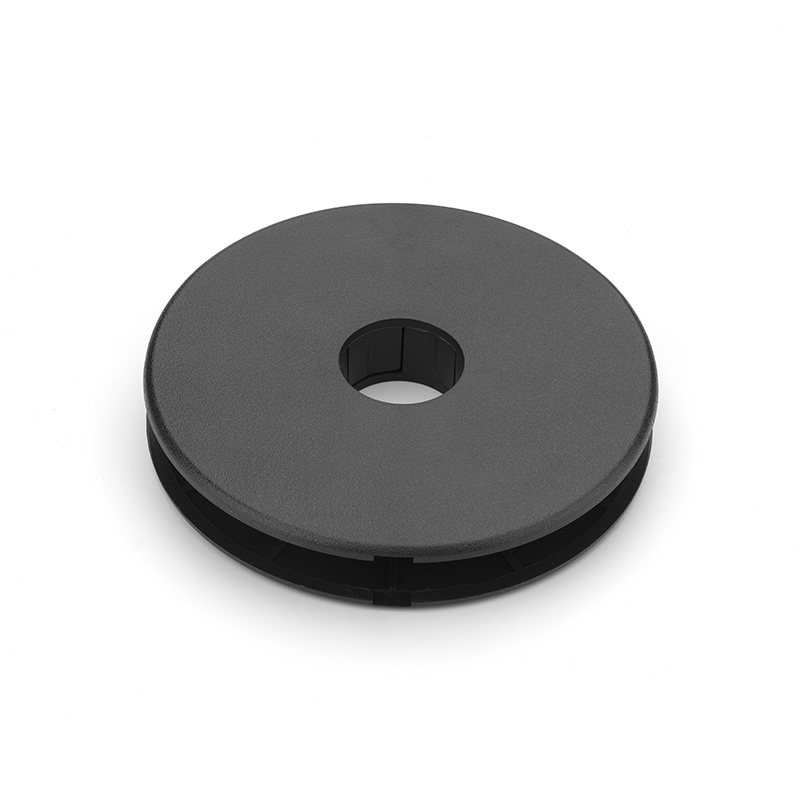

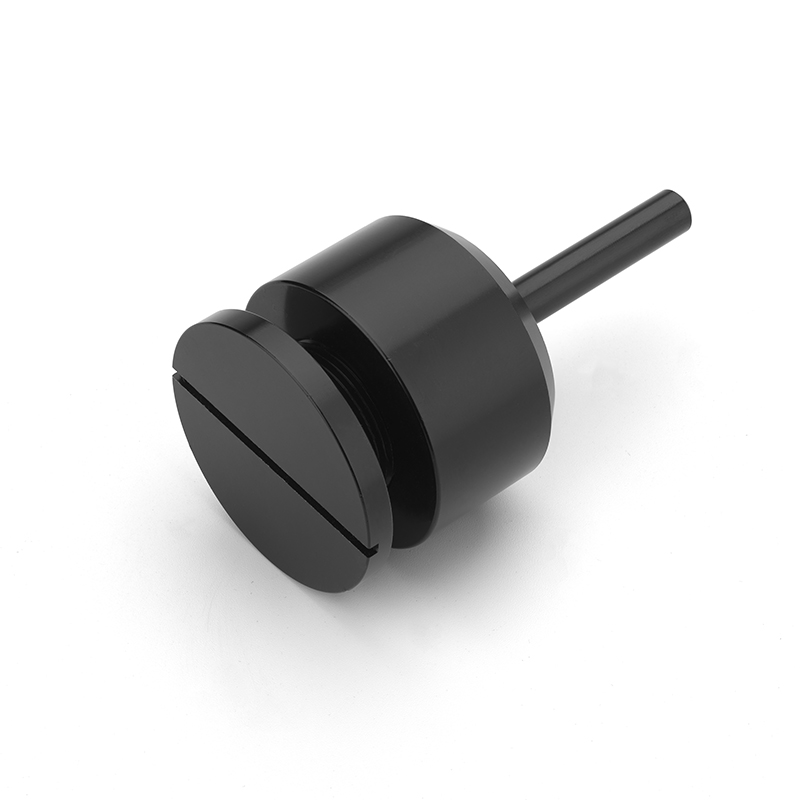

Wheel Handle:

No Products Adapt to Hole Dia.(mm) Description Comes standard Products Remark

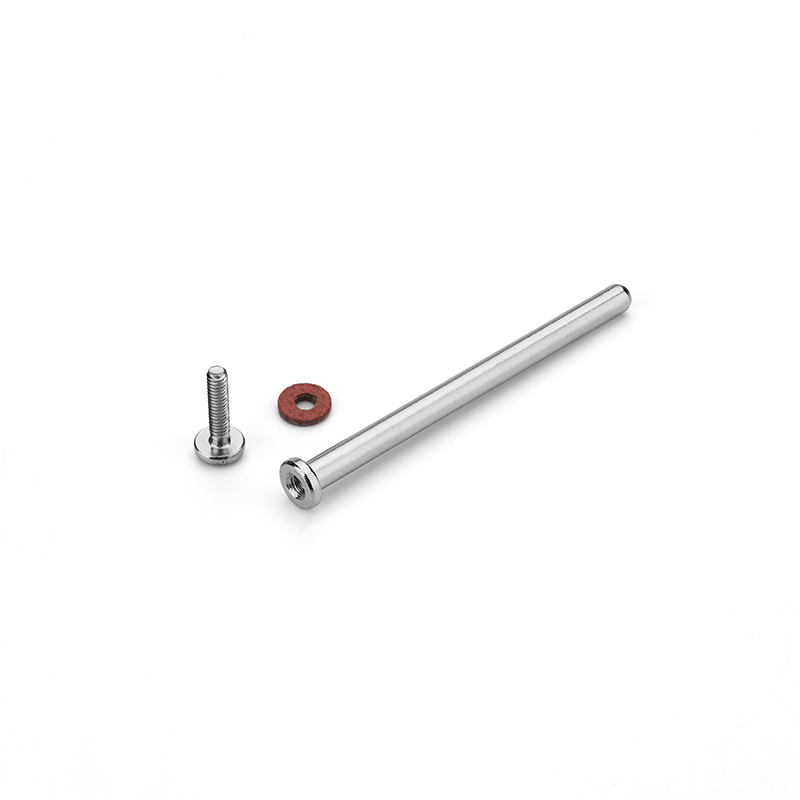

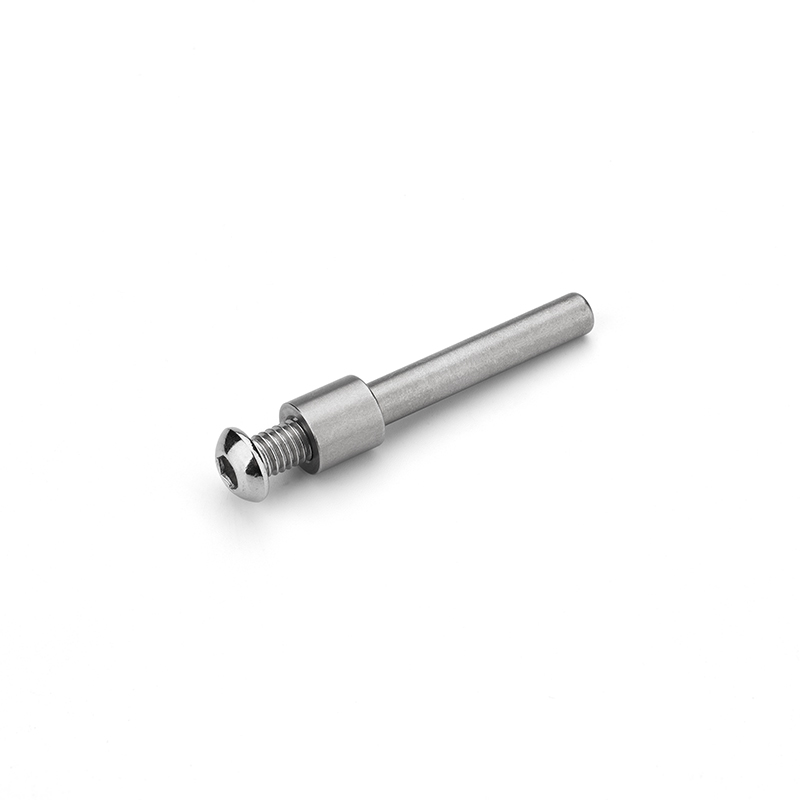

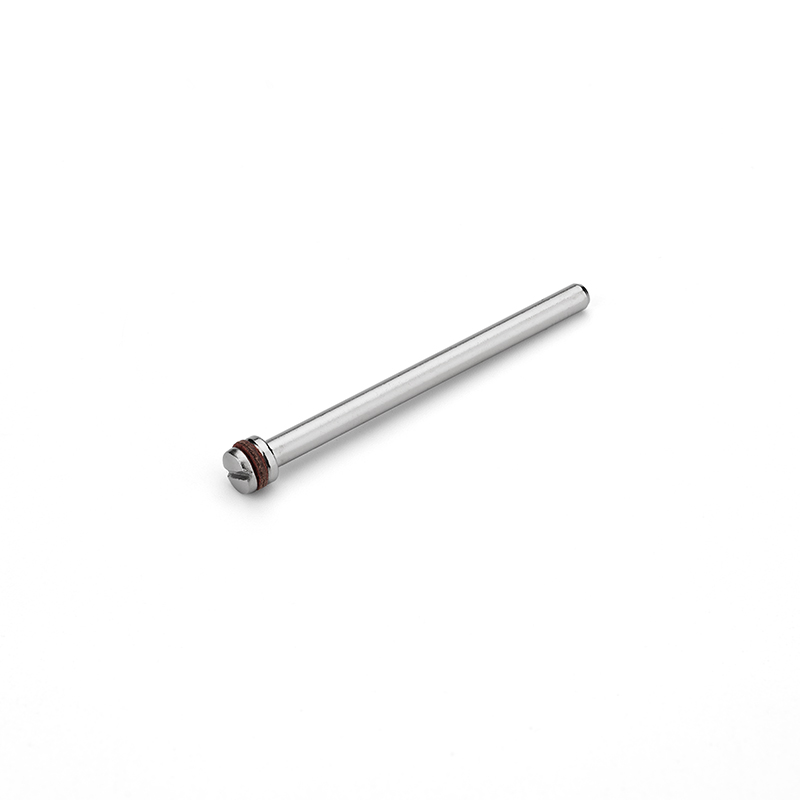

1 DB22 2.2 For use with Dia.15~1" bushes DB15, DB20, DB20-A~D, DB20-1, DB20--2, DB25

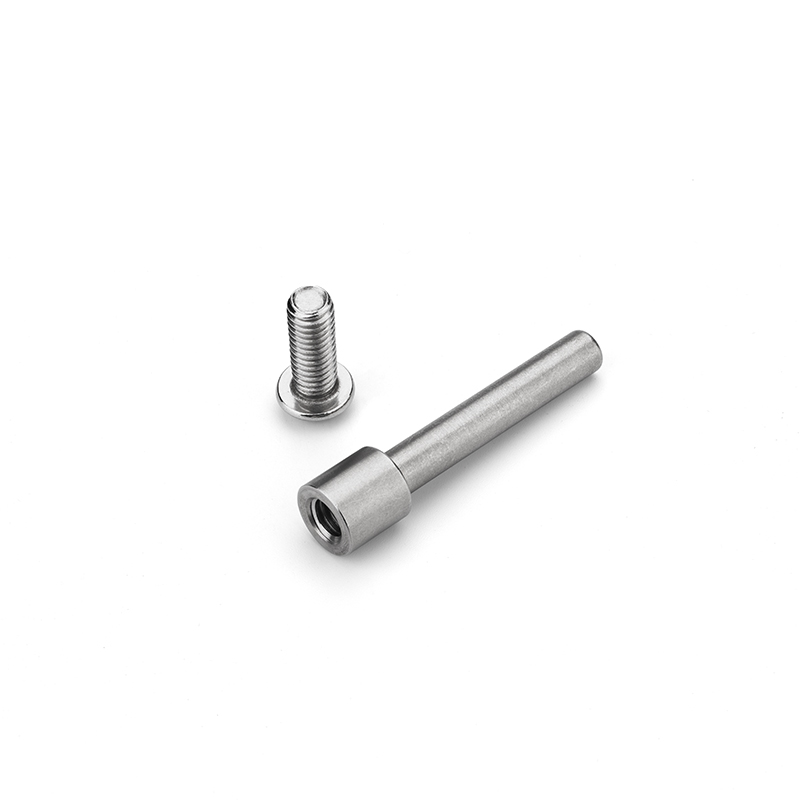

2 DB6 6 For use with Dia.33 bushes DB33-A, DB33-B

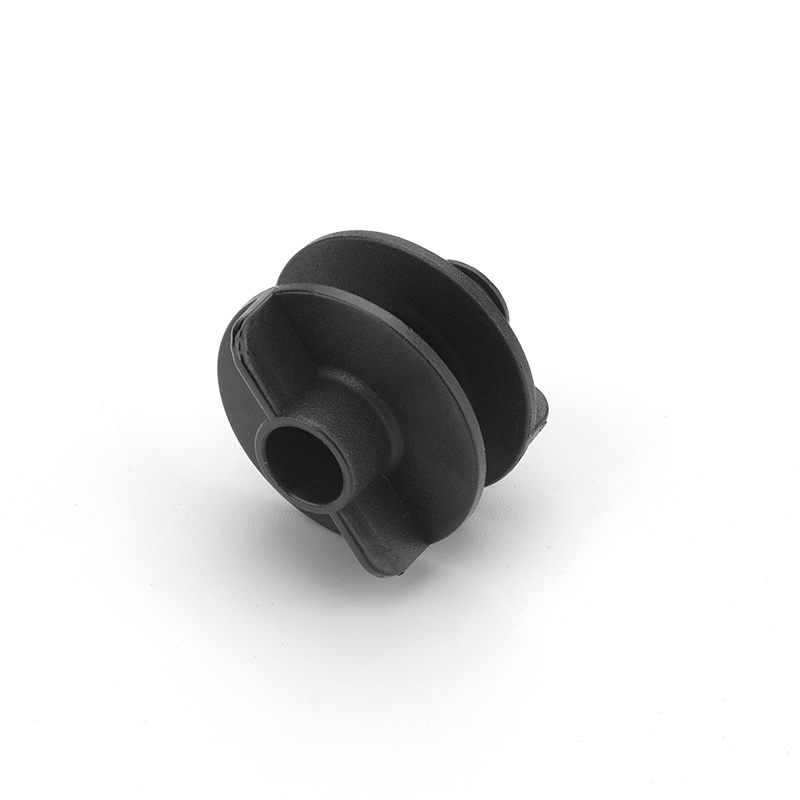

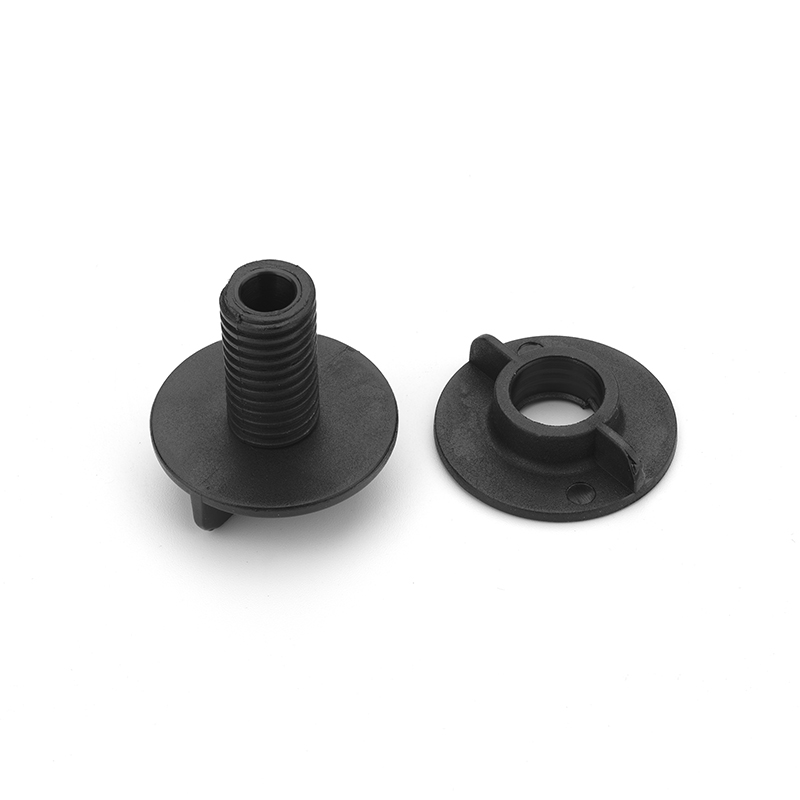

3 DB10A 10 For use with 2~3" bushes DB50, DB76, DB76A

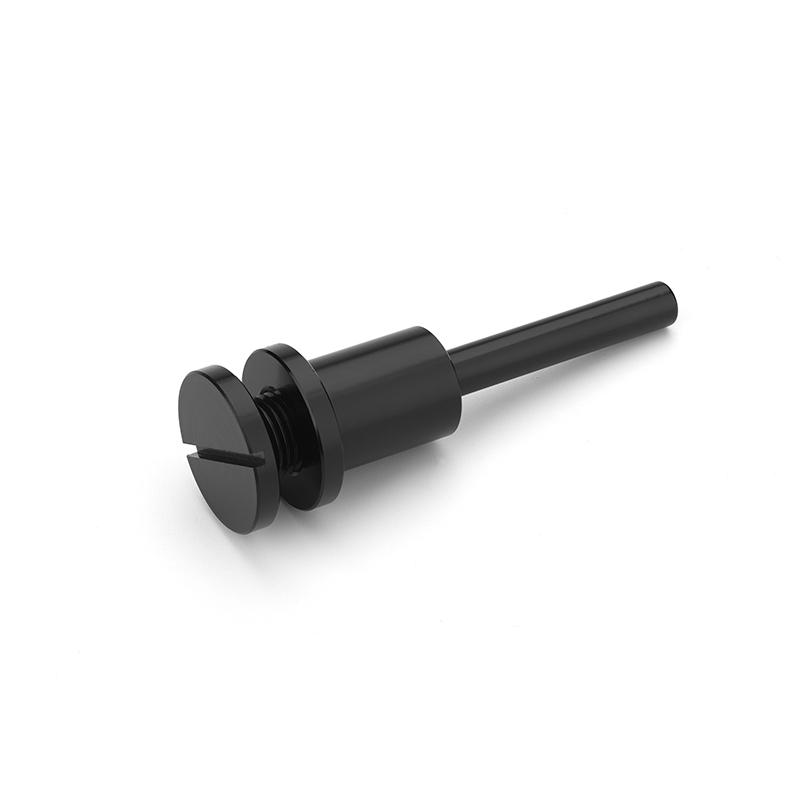

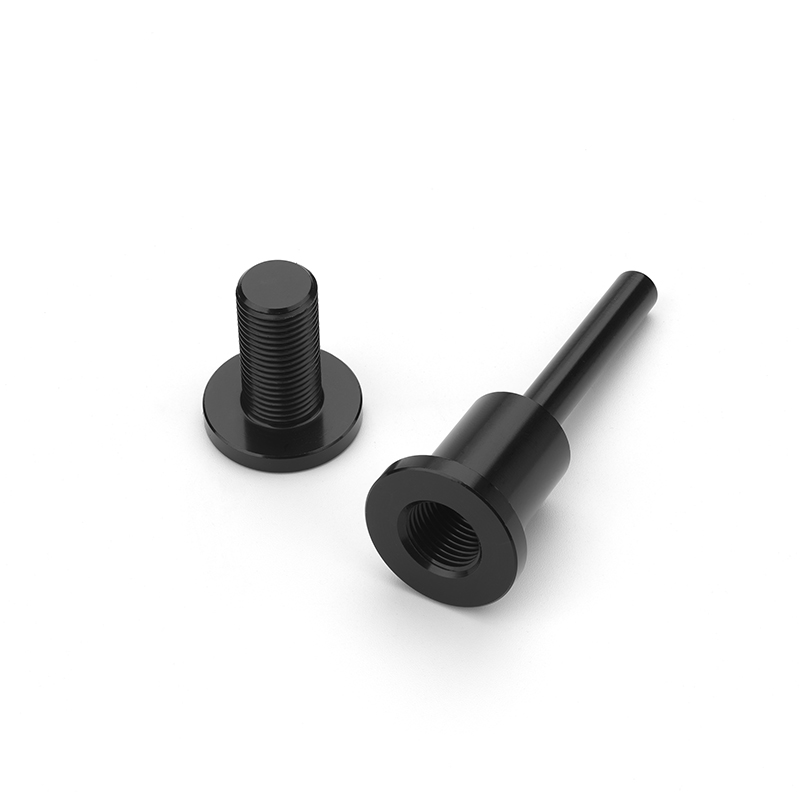

4 DB10B 10 For use with 2~3" bushes DB50, DB76, DB76A

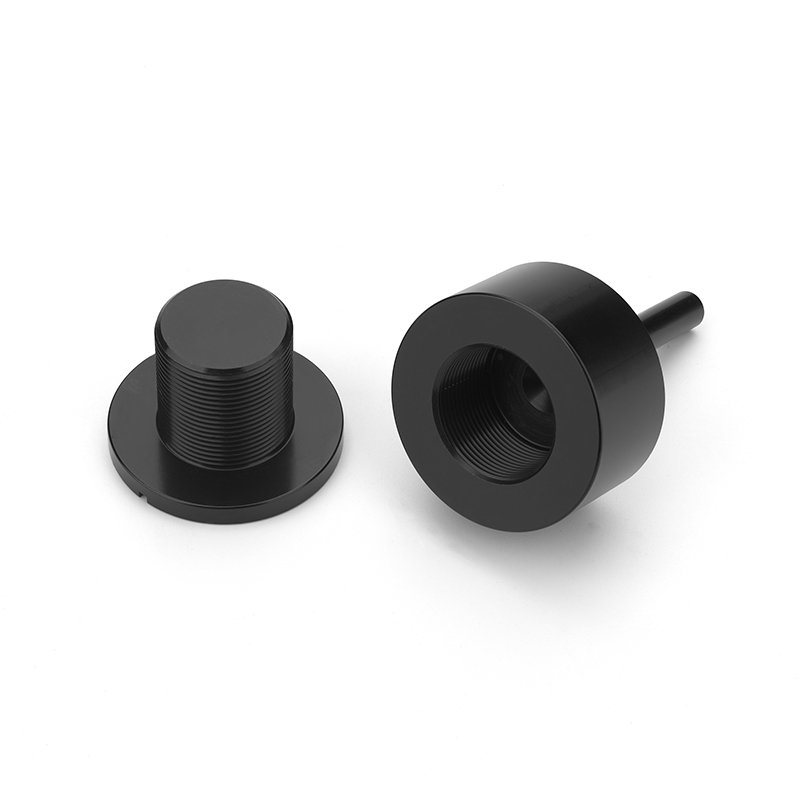

5 DB20 20 For use with 4" bushes DB96, DB96-A

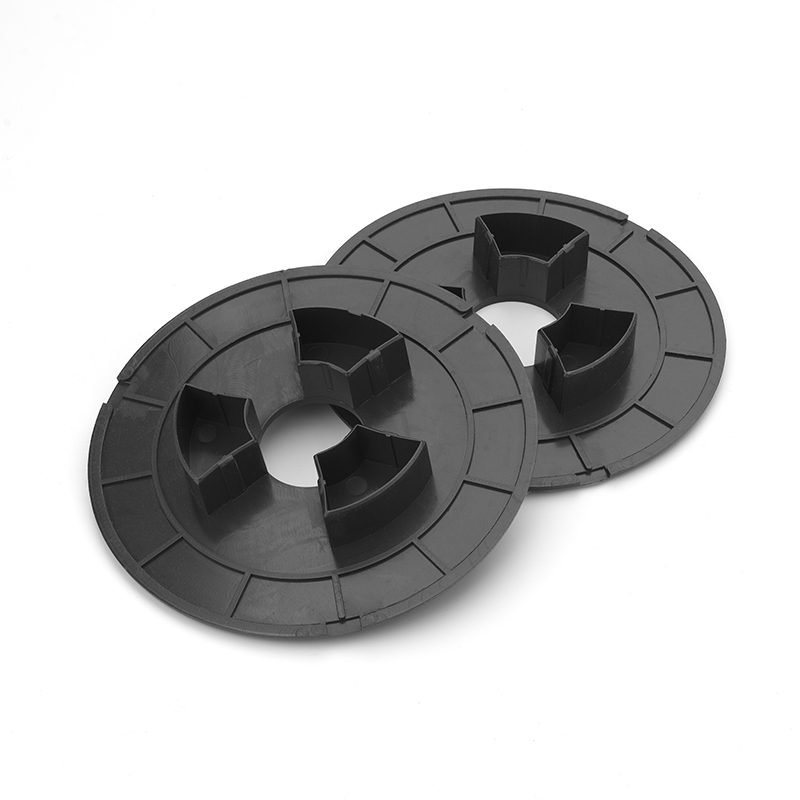

6 DB50A 50 For use with 6" bushes DB150 10 Pcs discs for one fixture

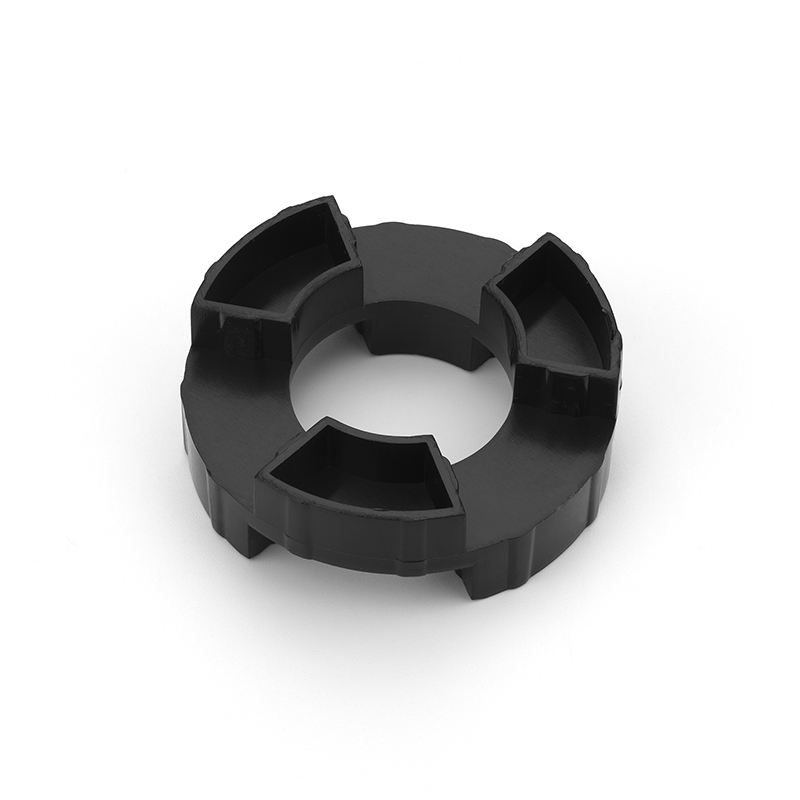

7 DB50B 50 For use with 6" bushes DB150 15 Pcs discs for one Extendor Adaptor

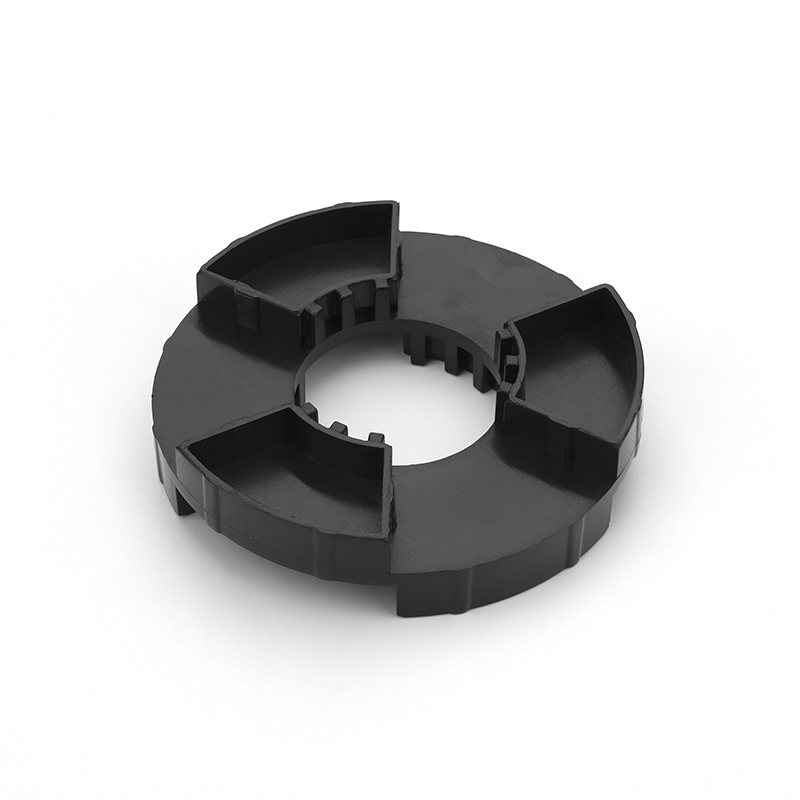

8 DB76A 76 For use with 8" bushes DB200 10 Pcs discs for one fixture
9 DB76B 76 For use with 8" bushes DB200 11 Pcs discs for one Extendor Adaptor
