Factory Customizable silicon carbide diamond aluminium oxide Disc brush for Polishing and Cleaning

Short Description:

We are manufacturer of Quality Disc Brushes that are widely used for cleaning purposes in several industrial machines. All our brushes are manufactured using high grade raw material and latest technology to ensure that these meet with international quality standards & norms. In addition to this, our brushes are available in the market in several sizes, designs and colors to fulfill the demands of customers. We also provide customization as per the specifications laid down by the customers.


Product Detail

Product Tags

Introduction:

We are manufacturer of Quality Disc Brushes that are widely used for cleaning purposes in several industrial machines. All our brushes are manufactured using high grade raw material and latest technology to ensure that these meet with international quality standards & norms. In addition to this, our brushes are available in the market in several sizes, designs and colors to fulfill the demands of customers. We also provide customization as per the specifications laid down by the customers.
The polishing disc brush that produce maximum burr removal rates while supplying an ideal surface finish at the same time. Abrasive nylon filaments work as flexible files, conforming to part contours, wiping and filing across part edges and surfaces.
Application of all kinds of house hold appliances, industrial cleaning, cylinder head, engine etc. Accept customization according to sample and technical drawing.
Silicon Carbide grite is harder, sharper and more aggressive than aluminum oxide and is preferred for finishing ferrous metals.
The Durable Silicon carbide abrasive nylon disc brushes for cleaning cylinder head and engine contain a combination of ceramic and silicon carbide filament that produce maximum burr removal rates while providing an ideal surface finish at the same time. Abrasive nylon filaments work as flexible files, conforming to part contours, wiping and filing across part edges and surfaces. Thanks for the linear construction, sharp new grains constantly come in contact with the work surface and wear off exposing fresh cutting particles. The Silicon carbide abrasive nylon disc brushes provides consistent deburring action throughout the length of bristles.

Feature:

Diameter : Standard 45 mm to 155mm and more
Bristle height: Standard 12mm, 15mm, 18mm, 25mm & 38mm and more
Raw material: Silicon, Green Silicon, Ceramic, Aluminum Oxide, Diamond
Grits: Standard 60,80,120,180,240,320,500,600,800 & 1000
Wire diameter: 0.2mm,0.4mm, 0.6mm,0.8mm,1.0mm,1.1mm,1.2mm,1.5mm, etc.
The shape of fildment can also be modified: dot, block or arc. Disc brushes are ideal for custom design machines or CNC.
Wet and dry. Better effect of wet grinding, central water or side water, bottom central water, polishing and rinsing powder dirty. No dust, no risk of explosion.
It is especially suitable for deburring of cylinder heads, engine blocks, hydraulic parts, pneumatic parts, etc.
Non-standard customized brushes are possible with all different diameter, bristle heights, raw-material, grits & combination with desired bristle height.
The choice of bristles depends on the substrate being machined, the amount of burrs and the final finishing requirements.

Model Parameters

No Products Shape Shank diamter (mm) Brush diameter (mm) Wire height (mm) Wire diameter (mm) Grit Brush material Max. spend (RMP)

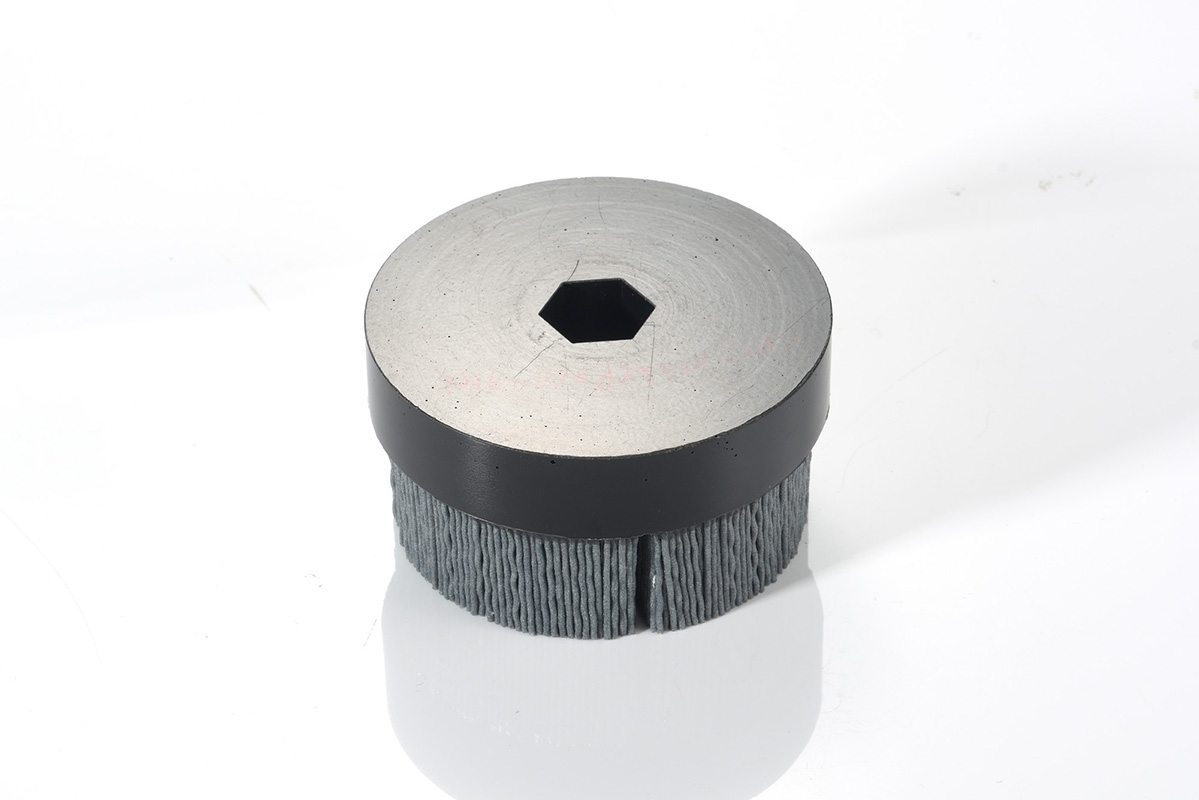

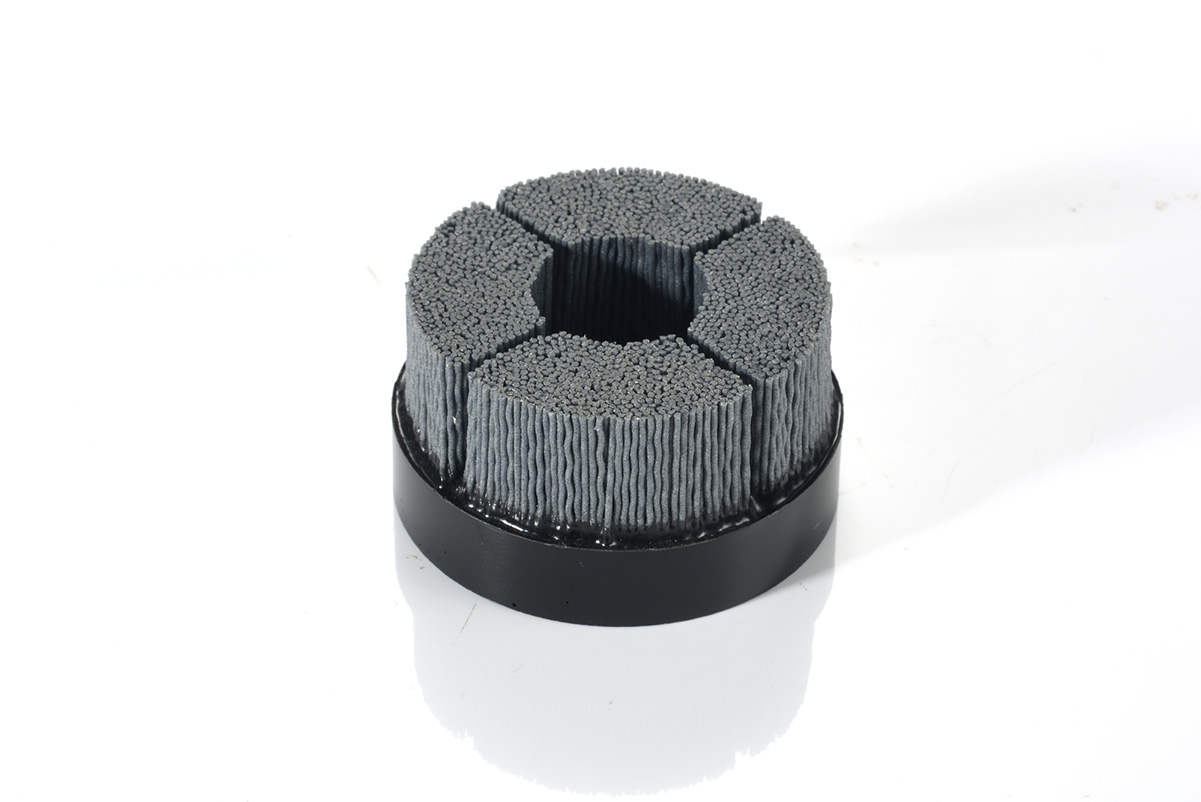

1 D40T20F4 square Can be customized 40 20 1.00 180# Silicon carbide 2500

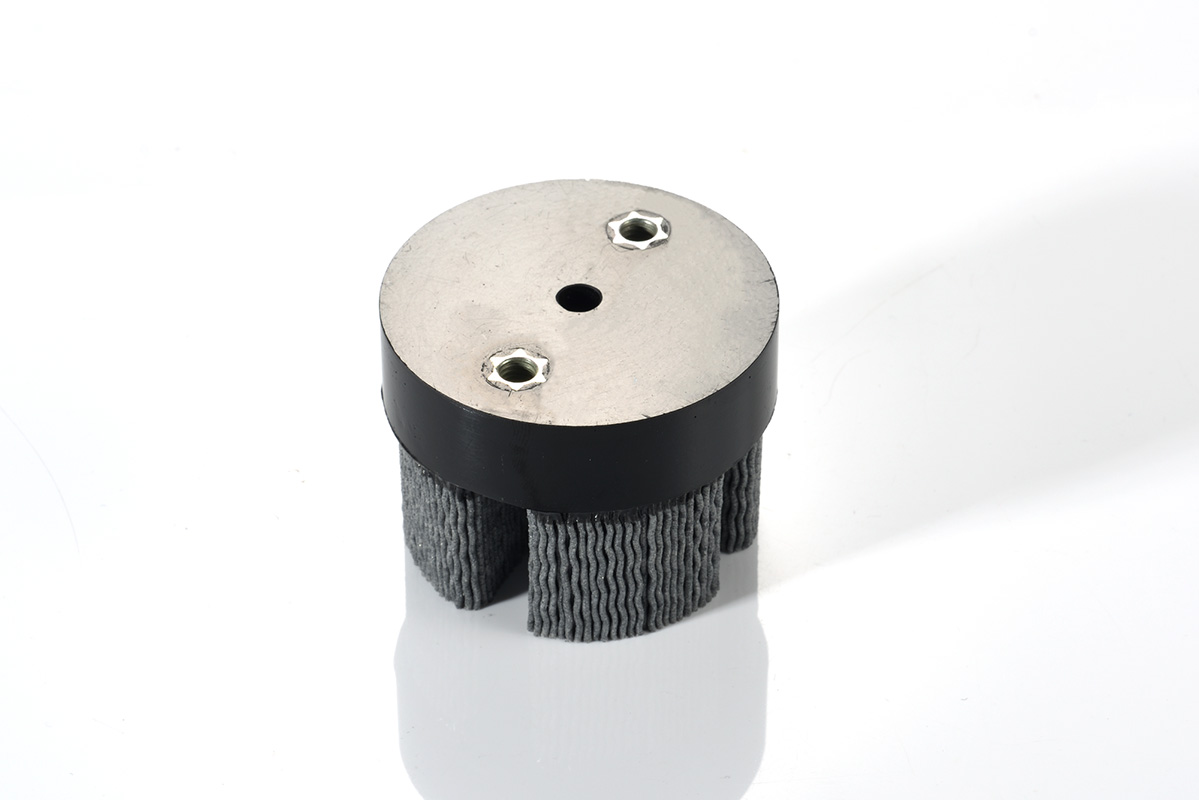

2 D40T25F4 square Can be customized 40 25 1.00 180# Silicon carbide 2500

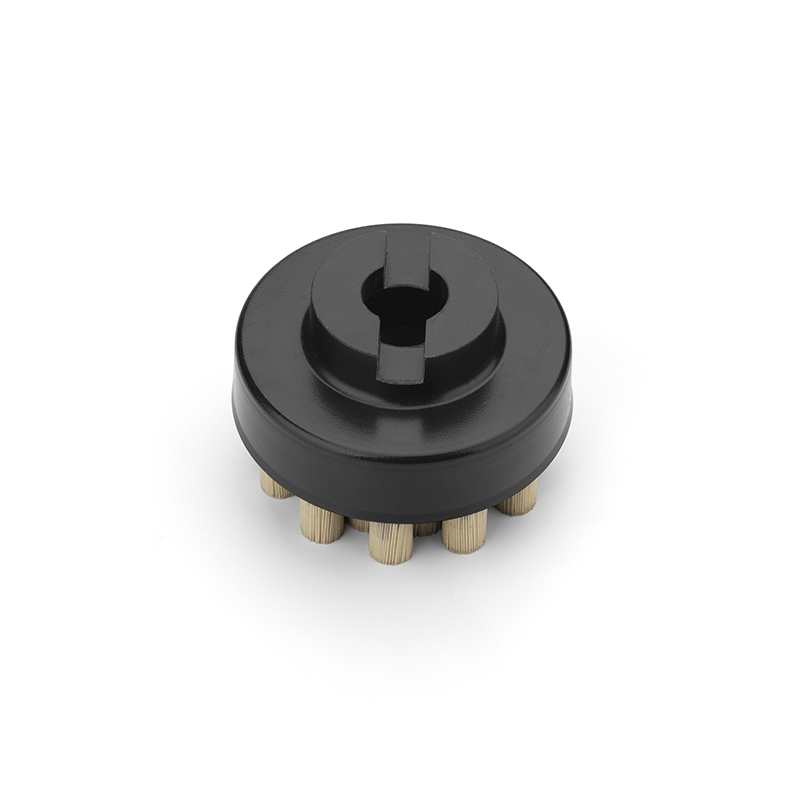

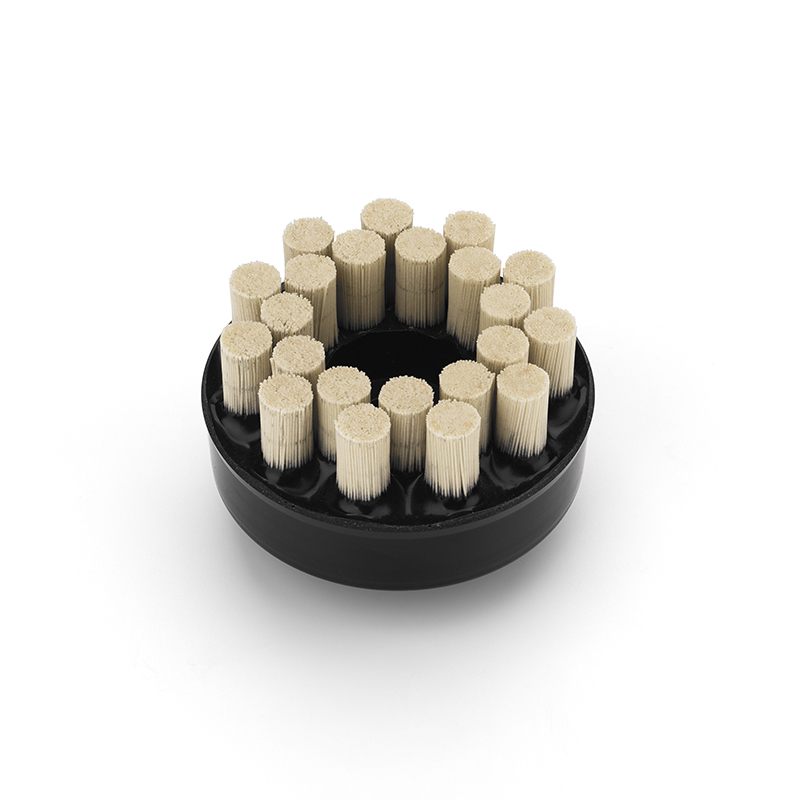

3 D55T15d8Z22 dots Can be customized 55 15 0.40 600# Diamond 2500

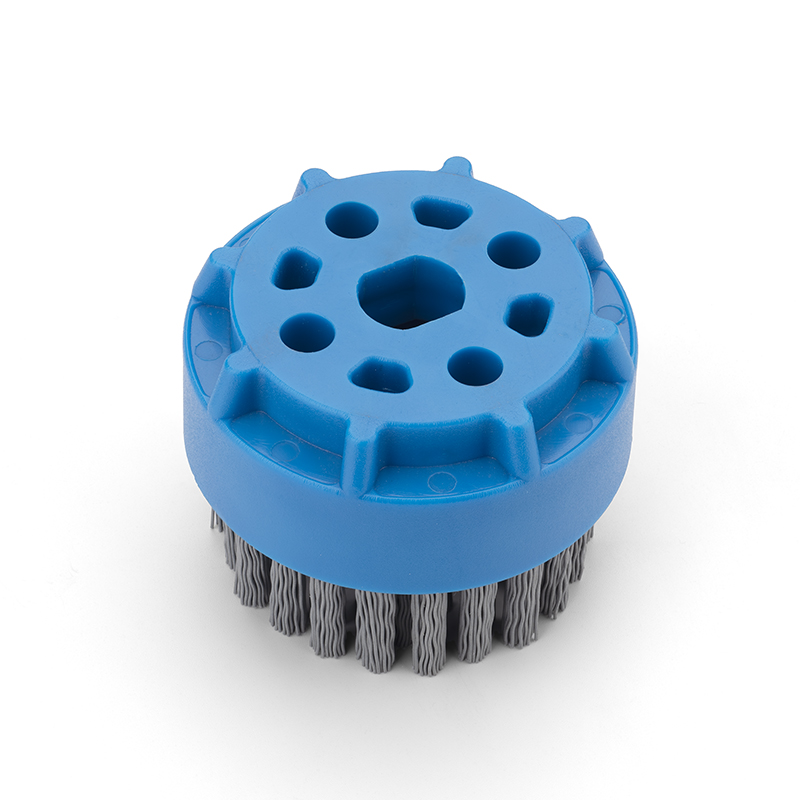

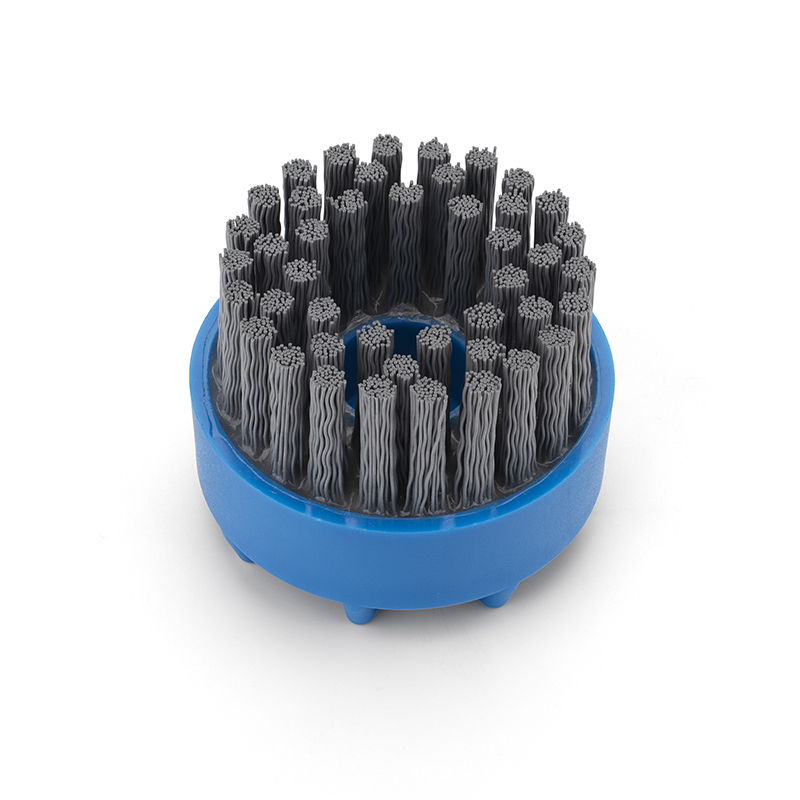

4 D60T25d5Z44 dots Can be customized 60 25 0.50 500# Silicon carbide 2500

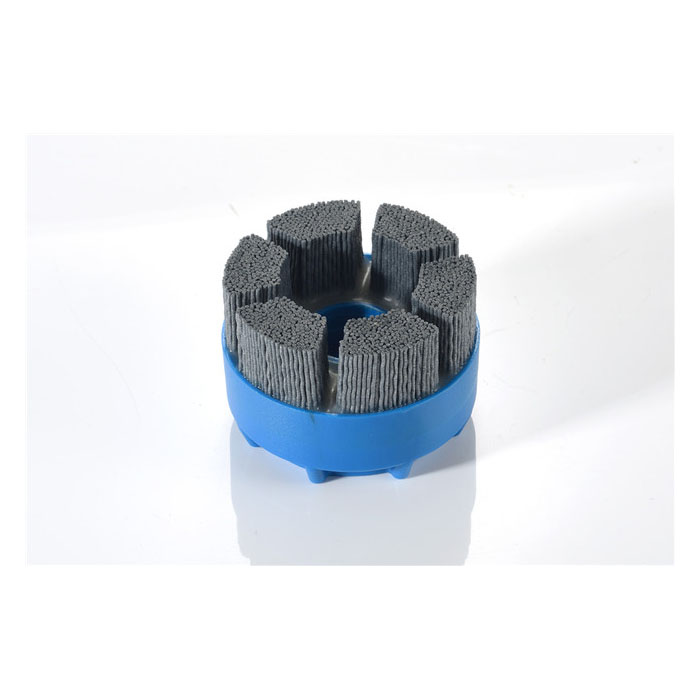

5 D80T15F6 square Can be customized 80 15 1.00 180# Silicon carbide 2500

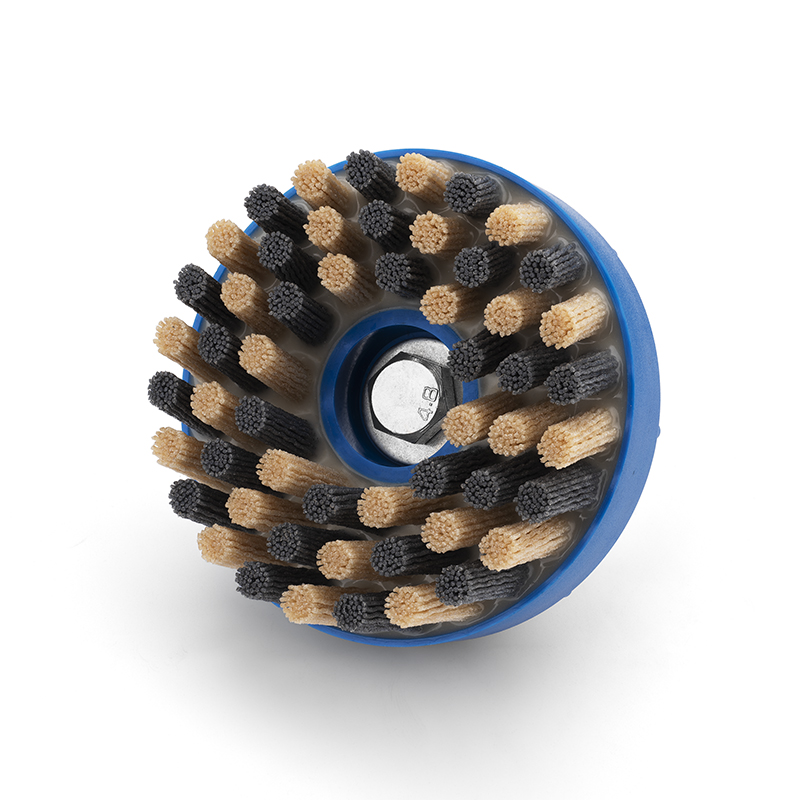

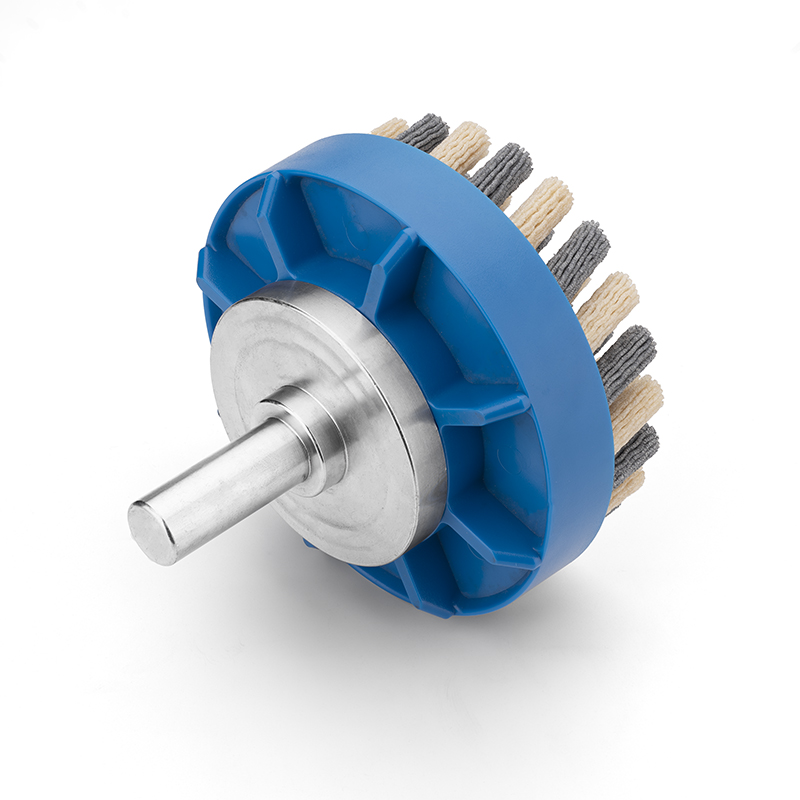

6 D120T25d10Z54 dots Can be customized 120 25 1.10 120# Silicon carbide/ceramic 2000

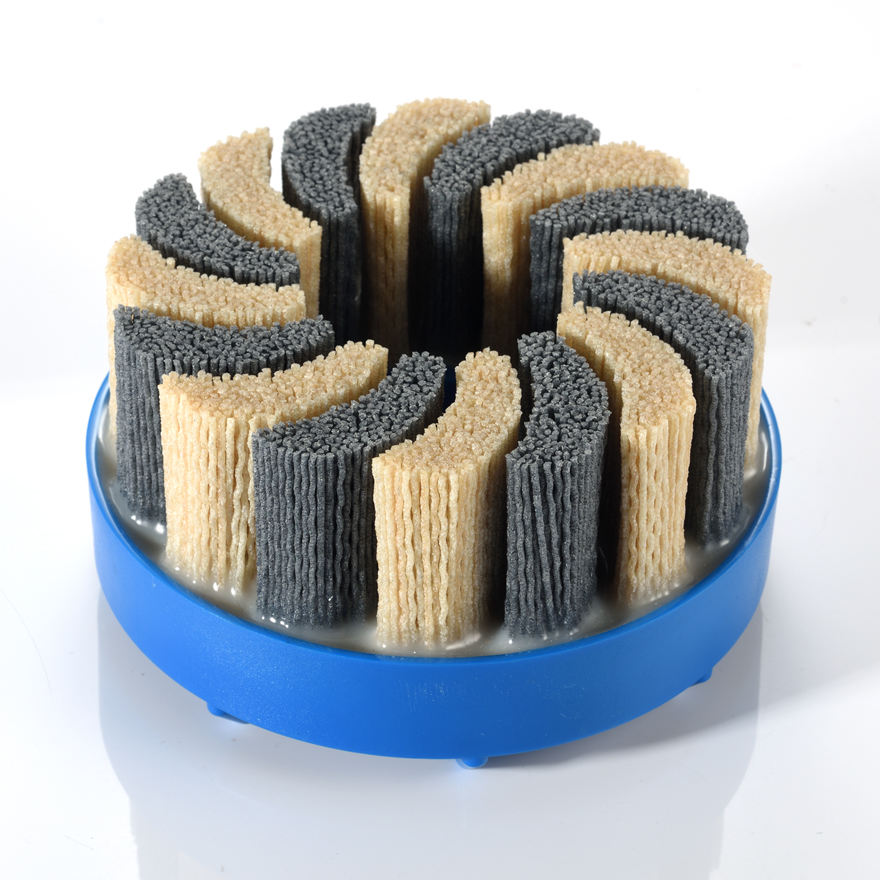

7 D120T40F16 arc Can be customized 120 40 1.10 120# Silicon carbide/ceramic 2000

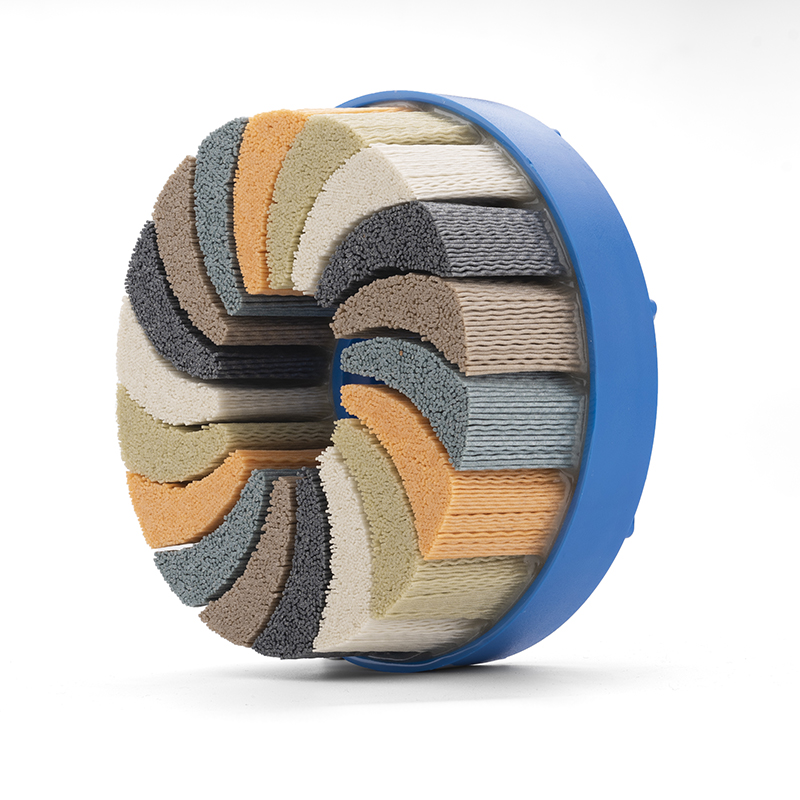

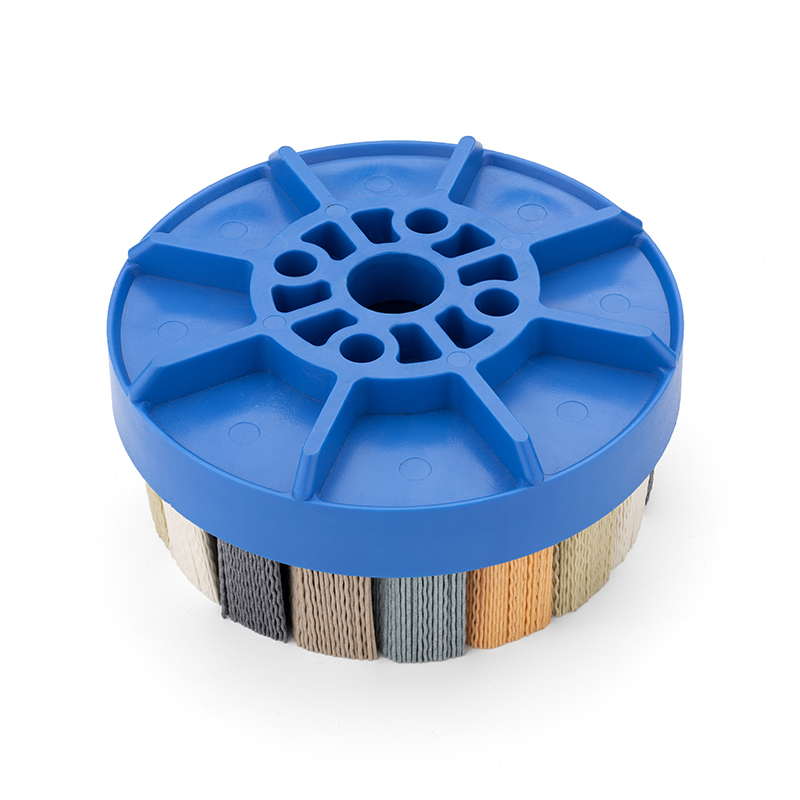

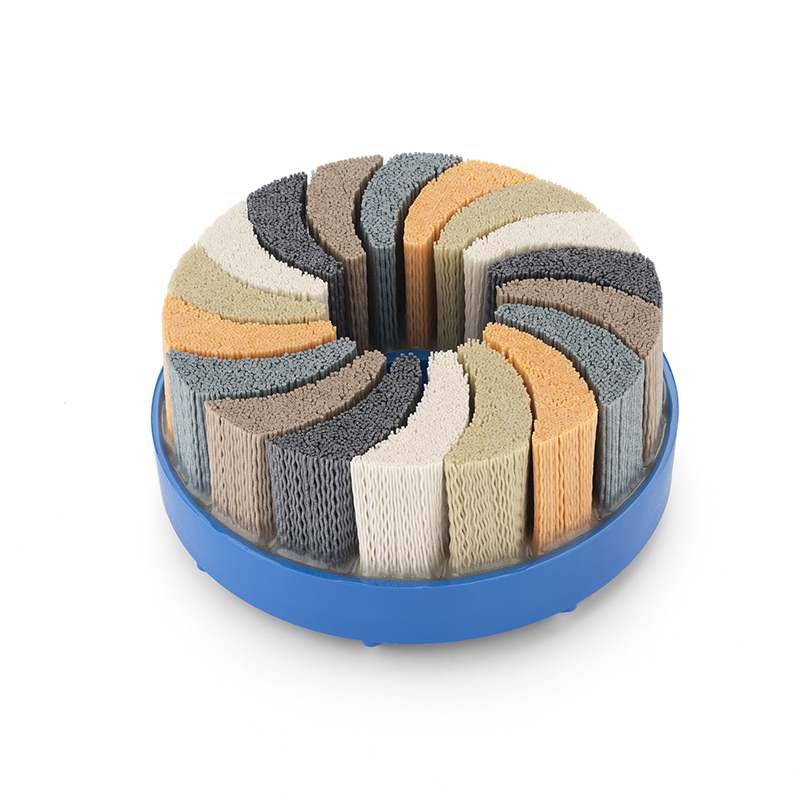

8 D145T40F18 arc Can be customized 145 40 1.00 180# Mixed wire 2000

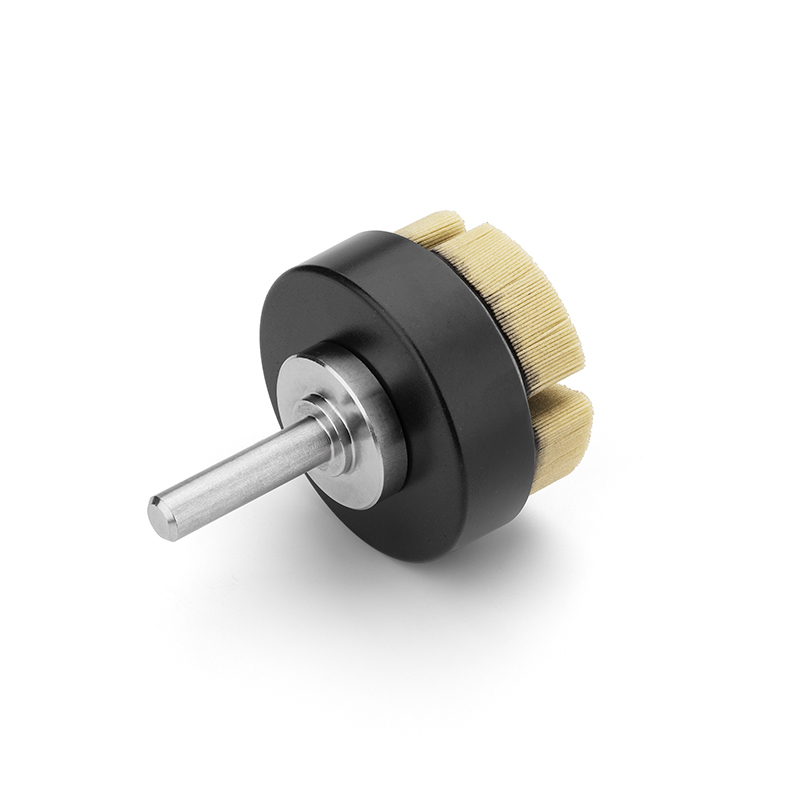

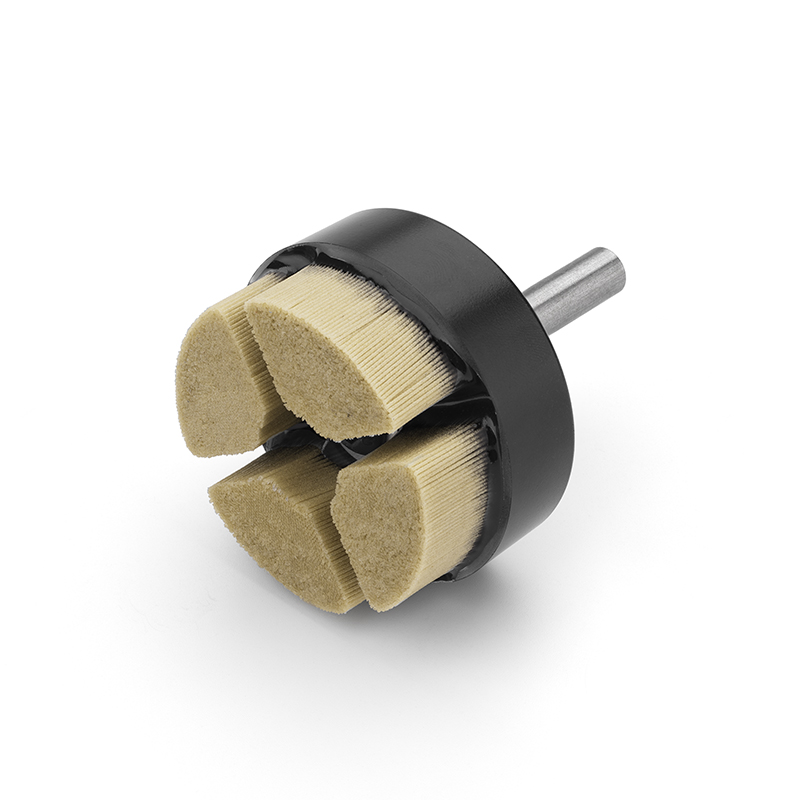

9 S8*32D50T14F4 arc 8 50 14 0.50 320# Diamond 2500

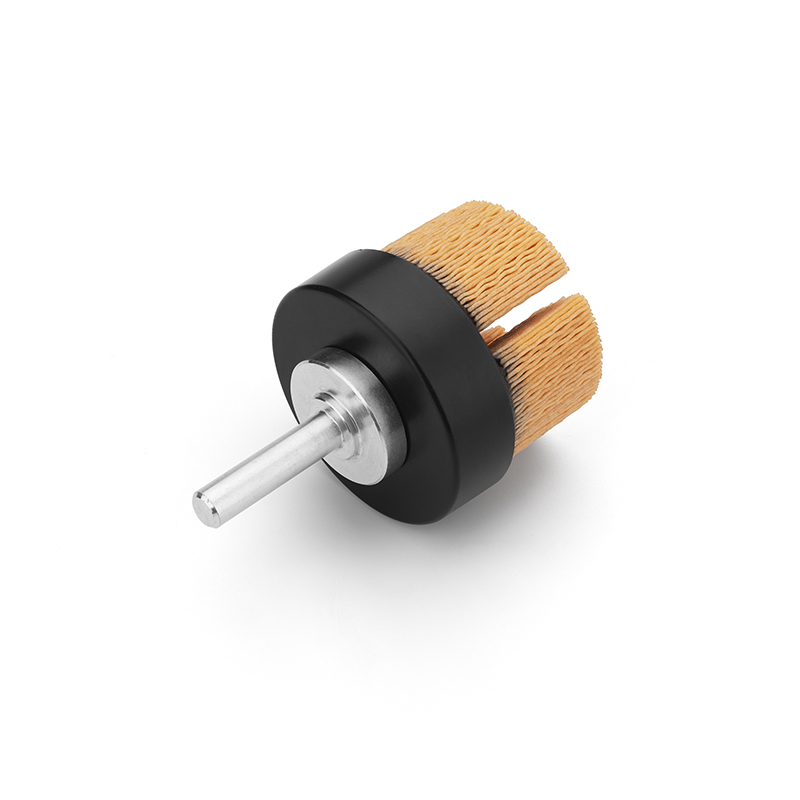

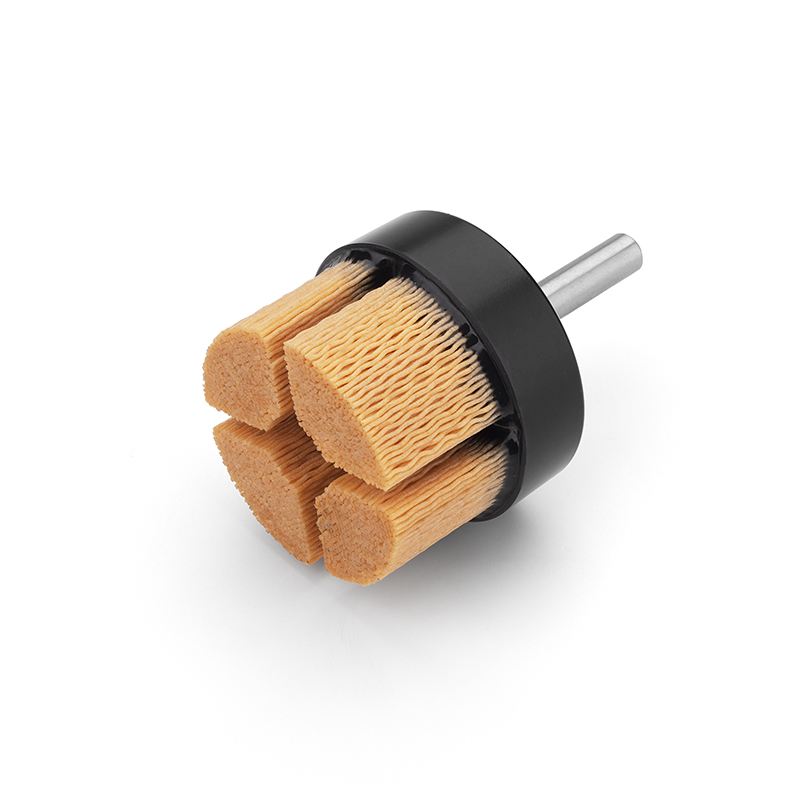

10 S8*32D50T25F4 arc 8 50 25 0.90 240# Orange Ceramic 2500

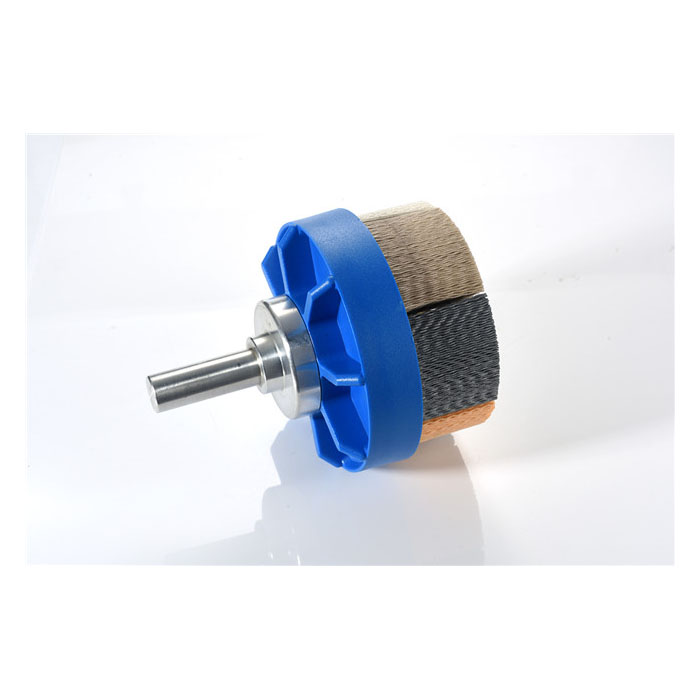

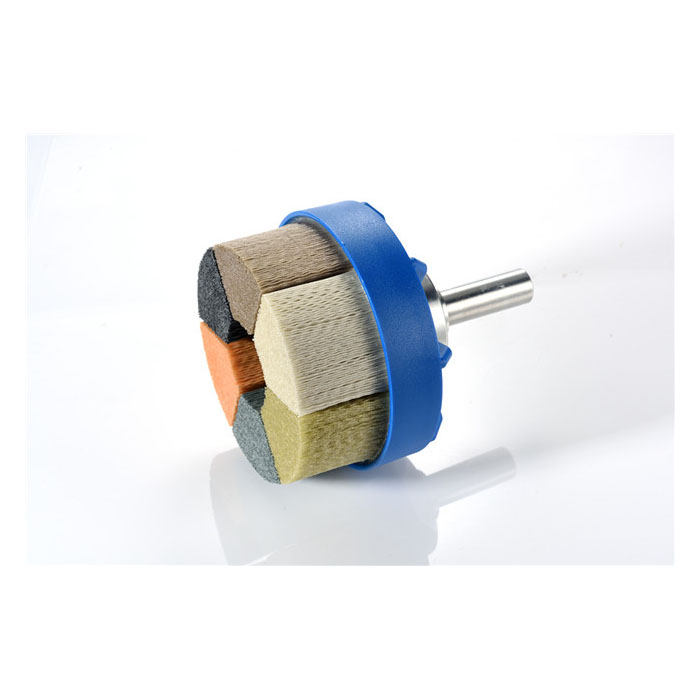

11 S16D100T40F6 square 16 100 40 1.00 180# Mixed wire 2000
