Manufacturer Fast delivery stainless steel finishing polishing End brush

Short Description:

We are manufacturer of Quality End Brushes that are widely used for cleaning purposes in several industrial machines. It is mainly used to deburr and finely polish the surface of the thrown object, so the type and characteristics of the brush wire should be determined according to different requirements.All our brushes are manufactured using high grade raw material and latest technology to ensure that these meet with international quality standards & norms.


Product Detail

Product Tags

Introduction:

We are manufacturer of Quality End Brushes that are widely used for cleaning purposes in several industrial machines. It is mainly used to deburr and finely polish the surface of the thrown object, so the type and characteristics of the brush wire should be determined according to different requirements.All our brushes are manufactured using high grade raw material and latest technology to ensure that these meet with international quality standards & norms.
In addition to this, our brushes are available in the market in several sizes, designs and colors to fulfill the demands of customers.
When machining the components, many abrasive nylon is equivalent to the same number of flexible rasp that can be bent and naturally fit to the component profile and enter into groove holes where other general tools are inaccessible, remove the burrs, stains,paint and sharp edges and blunt down to a smooth arc, and finally achieve the ideal results of deburring, edge buffing and surface finish.
Good finishing effect, high quality, long service life, high performance, high safety.It can be used with automatic machinery. We also provide customization as per the specifications laid down by the customers.

Function:

Machining Centre's – VMC / CNC /HMC
Special Purpose Machine's
Milling mark removal
Edge Radiusing
Surface Enhancement with improvement in Ra value
Large Flat Area Deburring
Rust removal
END brush are Widely used in various workpiece polishing deburring.
CleaningFeature

Application:

Electronic industry, metal industry, color steel plate, steel tile, hardware and building materials industry, metallurgy, jewelry, automobile and other fields, widely used
Brush diameter : Standard 2 mm to 30mm and more
Bristle height: Standard 6mm, 8mm, 10mm, 15mm & 30mm and more
Raw material: Silicon carbide, Green Silicon, Ceramic, Aluminum Oxide, Diamond
Grits: Standard 60,80,120,180,240,320,500,600,800 & 1000#
Wire diameter: 0.2mm,0.4mm, 0.6mm,0.8mm,1.0mm,1.1mm,1.2mm,1.5mm, etc.

Considerations:

1.Non-standard customized brushes are possible with all different diameter, bristle heights, raw-material, grits & combination with desired bristle height.
2.The choice of bristles depends on the substrate being machined, the amount of burrs and the final finishing requirements.



Model Parameters

No Products Shank diamter (mm) Brush diameter (mm) Wire height (mm) Wire diameter (mm) Grit Brush material Max. spend (RMP)

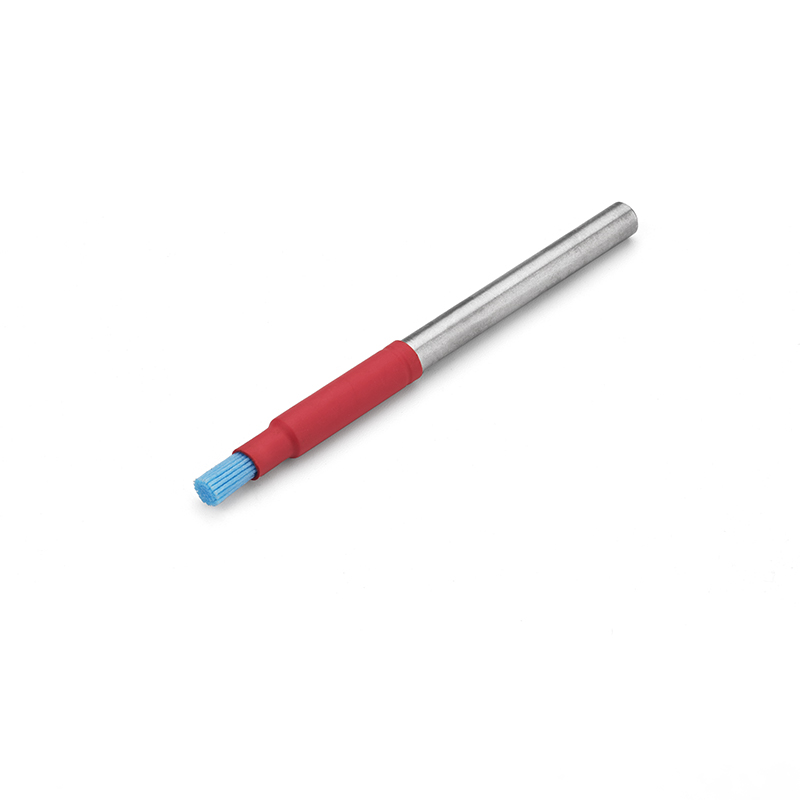

1 S4D3T10t5 4 3 10 0.40 240# Blue ceramic 6000

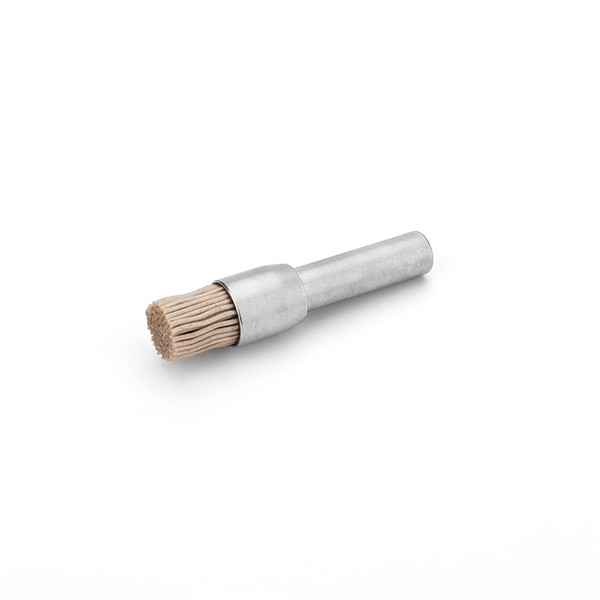

2 S6D8T9 6 8 9 0.60 320# Aluminium oxide 6000

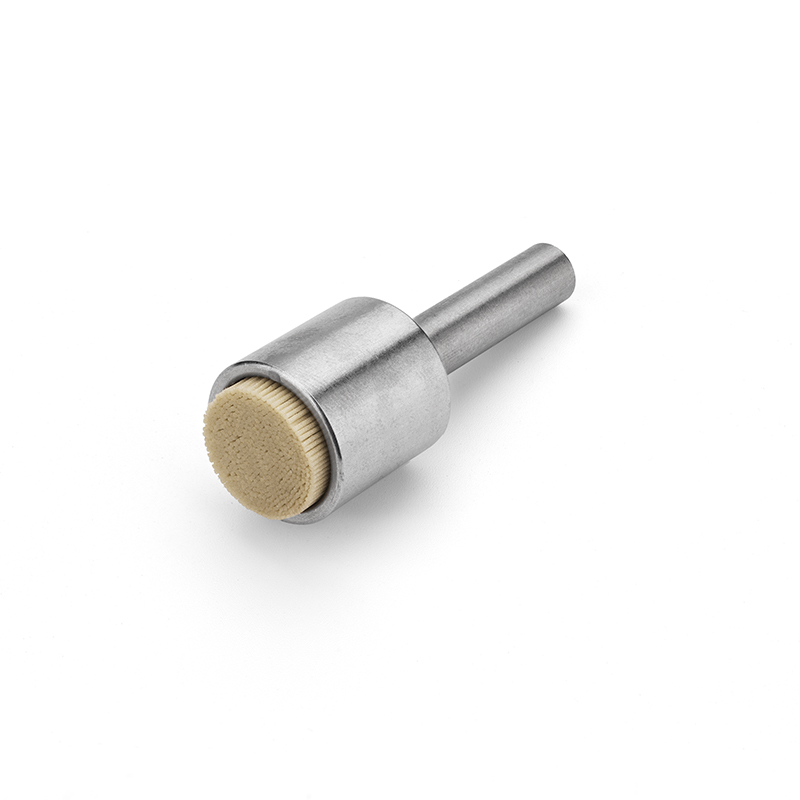

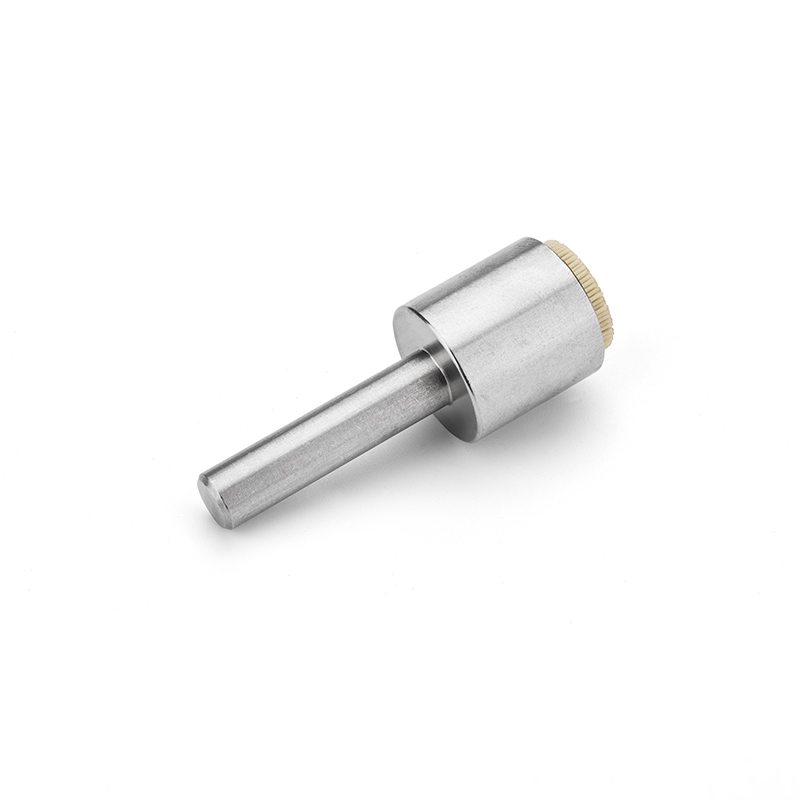

3 S6D15T2 6 15 2 0.40 600# Diamond 6000

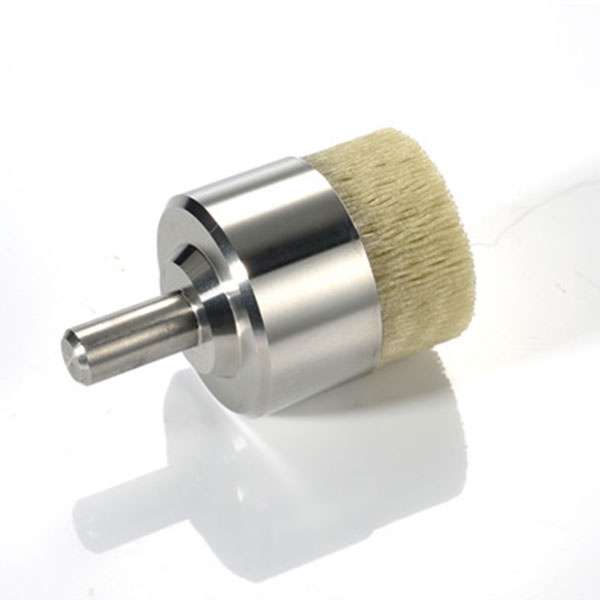

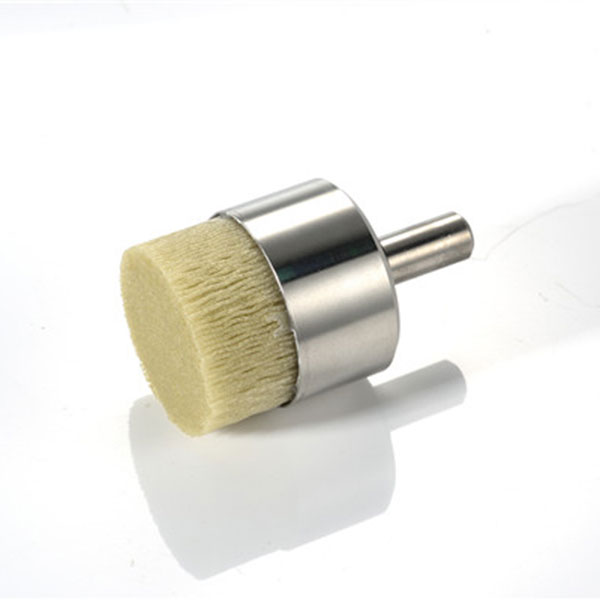

4 S6D18.5T10 6 18.5 8 0.75 240# Diamond 6000

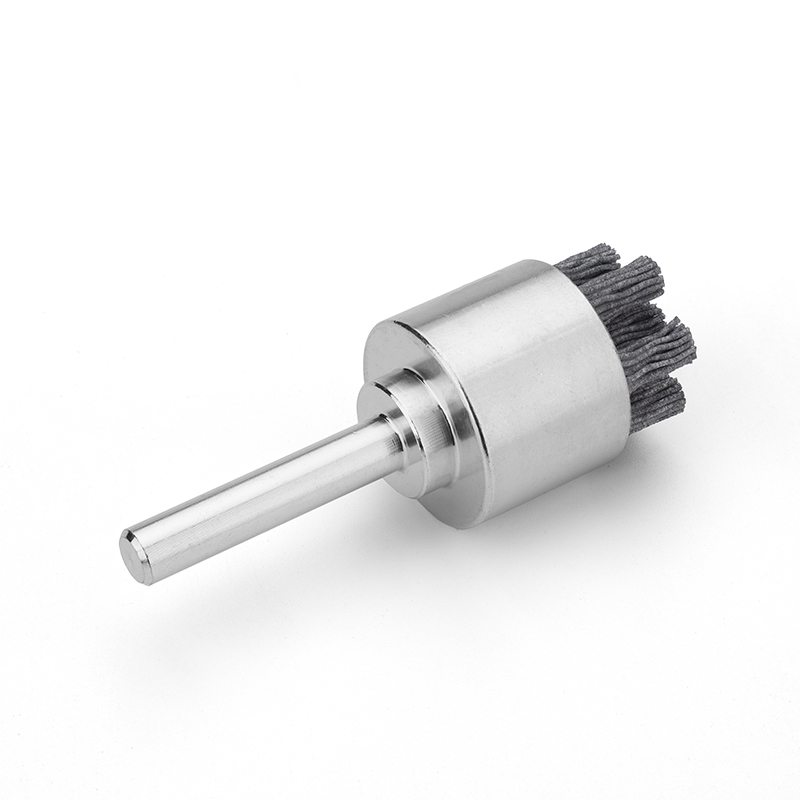

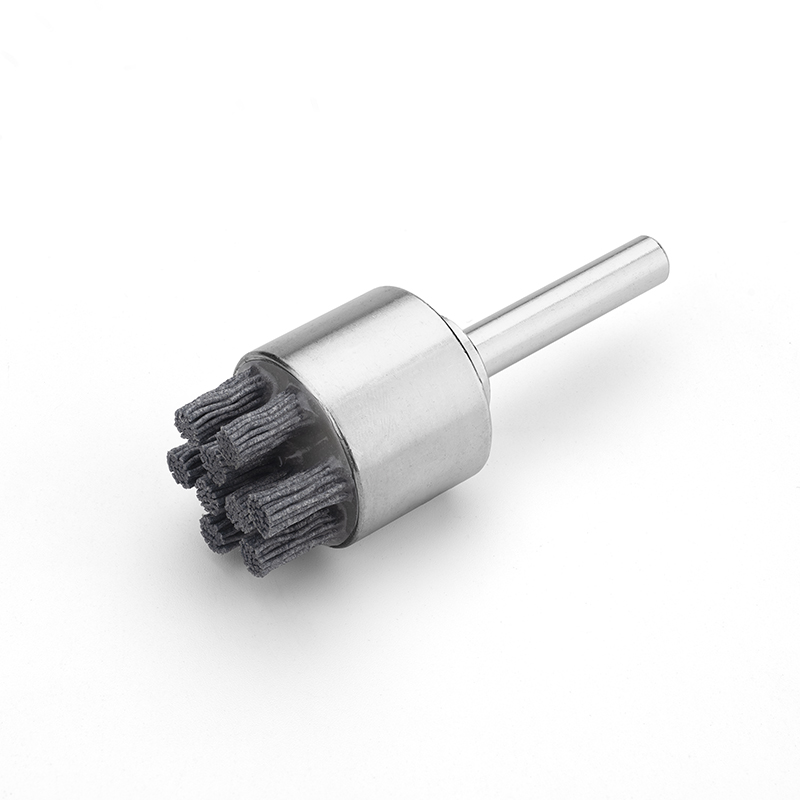

5 S6*30D23d4.5T10Z9 6 23*4.5 10 0.60 320# Silicon carbide 4500

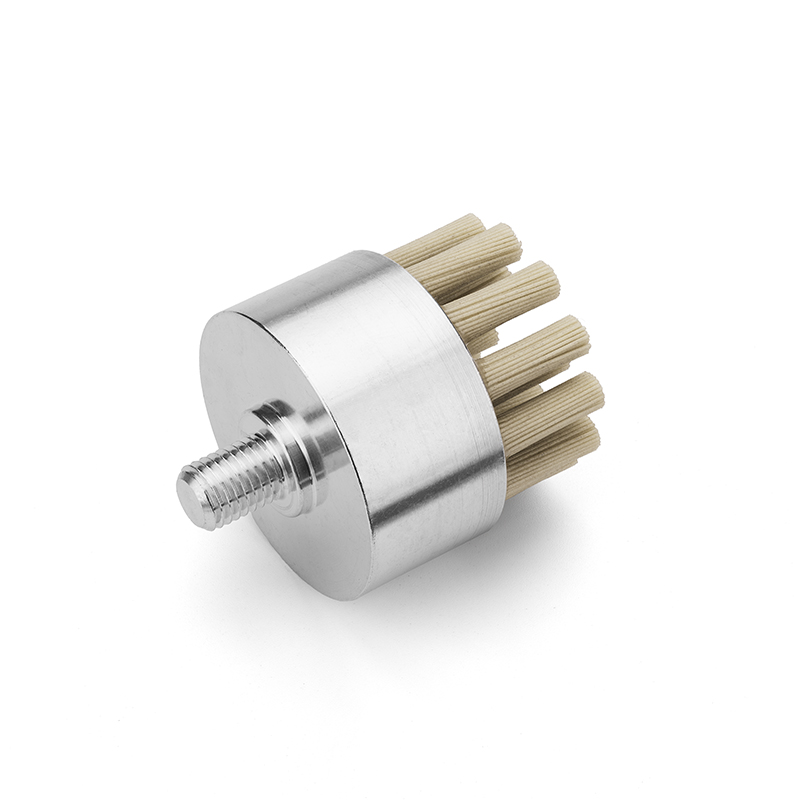

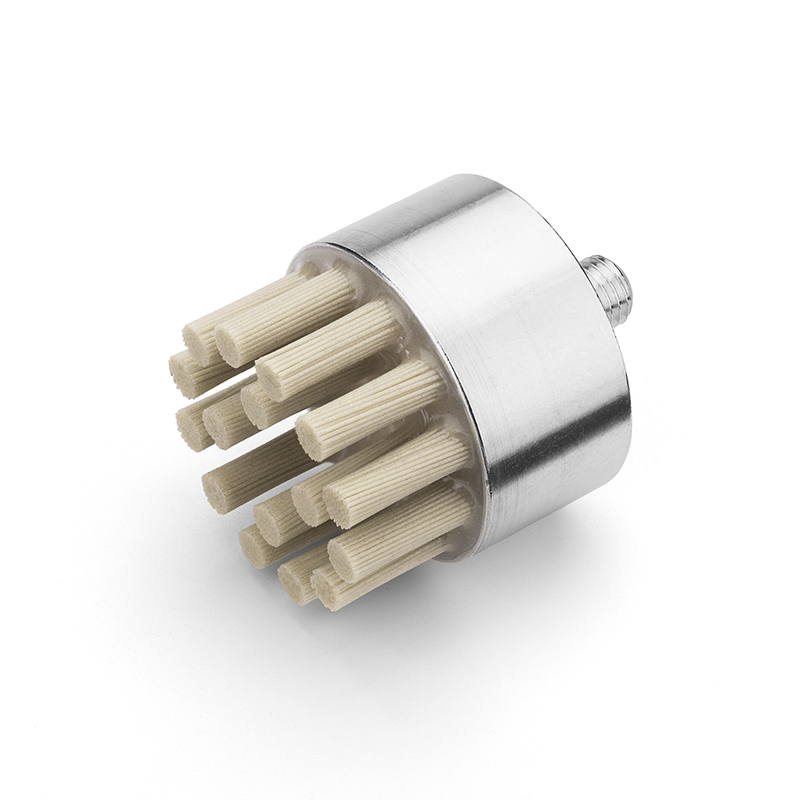

6 M8*10D35d4.5T15Z16 8 35*4.5 15 0.40 600# Diamond 4500
