Factory Wholesale Pipe Hole Cleaning Brush Tube Boiler Cleaning Brush Polishing Brush

Short Description:

Pipe brushes have a wide range of applications. They are generally used in hydraulic valve deburring, cylinder liner piston polishing, steel drum cleaning, test tube cleaning, boiler cleaning, and deburring of metal parts.


Product Detail

Product Tags

Introduction:

Pipe brushes have a wide range of applications. They are generally used in hydraulic valve deburring, cylinder liner piston polishing, steel drum cleaning, test tube cleaning, boiler cleaning, and deburring of metal parts.
It is commonly used for deburring of groove edges in hydraulic cutting holes, deburring of cross holes, deburring of cylinder blocks, engine parts, machining, in-hole machining, and brake valley machining. The pipe brush can be automatically centered and automatically calibrated to process the hole surface finely and consistently, without affecting the original precision and size of the workpiece, and is easy to use, safe, economical and effective.
Deburring and rounding small diameter holes has long been a headache for companies involved, and it is also a costly machining operation because the machining process requires a lot of manual work. Now, a miniature deburring duct brush has been developed to automate this process, improving product quality and consistency while saving time and costs.
The choice of bristles depends on the substrate being machined, the amount of burrs and the final finishing requirements.

Application:

CNC
Valves and Manifolds
Electrical and Electronic Equipment
Disk drive
medical tubing
Sprinkler System
nozzle
Aerospace
fuel injection device

Feature:

Diameter : Standard 2 mm to 30mm and more
Bristle height: Standard 12mm, 15mm, 18mm, 25mm & 38mm and more
Raw material: Silicon, Green Silicon, Ceramic, Aluminum Oxide, Diamond
Grits: Standard 120,180,240,320,500,600,800 & 1000
Products are ideal for piping or inner hole treatment, such as hole wall grinding and burr treatment. Silk material thickness and brush boby diameter can be customized
Non-standard customized brushes are possible with all different diameter, bristle heights, raw-material, grits & combination with desired bristle height.

Considerations:

1. Pipe brushes of different materials should be selected according to the situation of the workpiece
2. Do not use too much pressure. Excessive pressure will cause the thin lines on both sides to be distorted or overheated, causing the thin lines to break, melt quickly, and reduce the service life.

Model Parameters

No Products Handle diameter (mm) Brush diameter (mm) Wire height (mm) Total length (mm) Wire diameter (mm) Grit Brush material

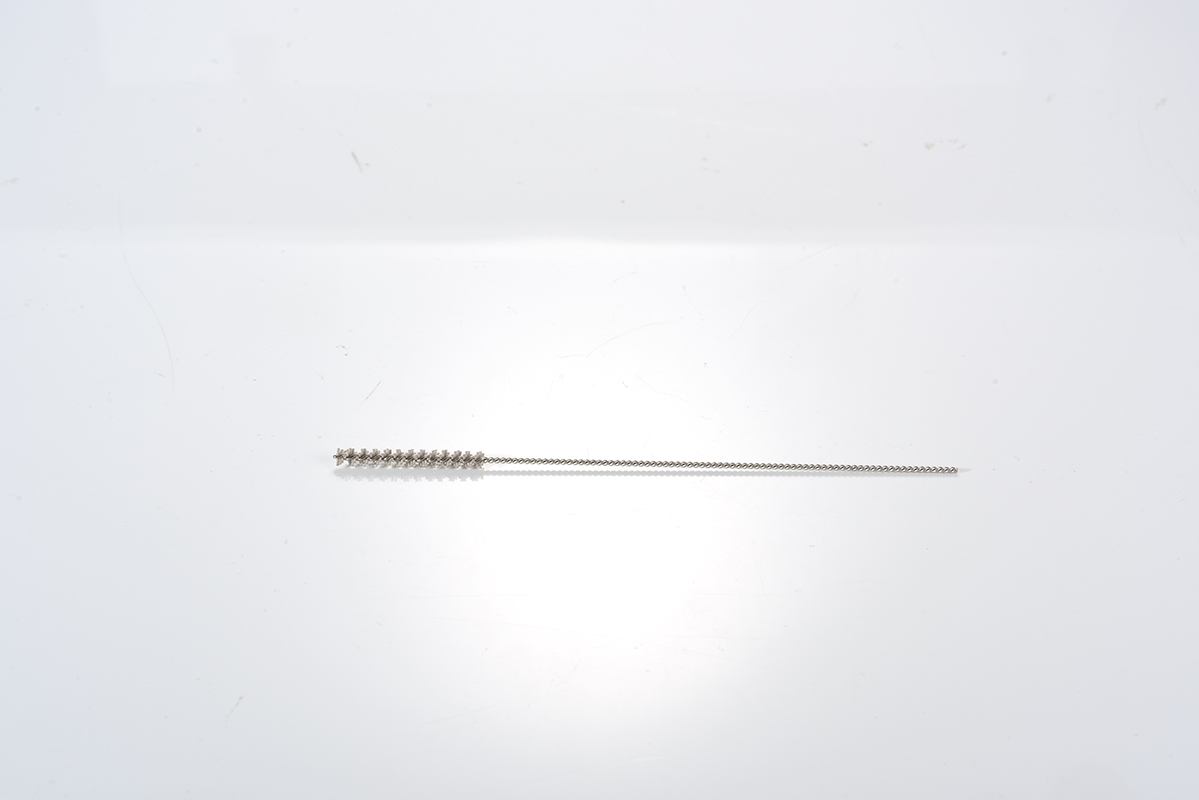

1 S1.2D3.0T23L42EA600 1.2 3 23 42 0.35 600# Aluminium oxide
2 S1.2D3.2T20L55EA600 1.2 3.2 20 55 0.35 600# Aluminium oxide

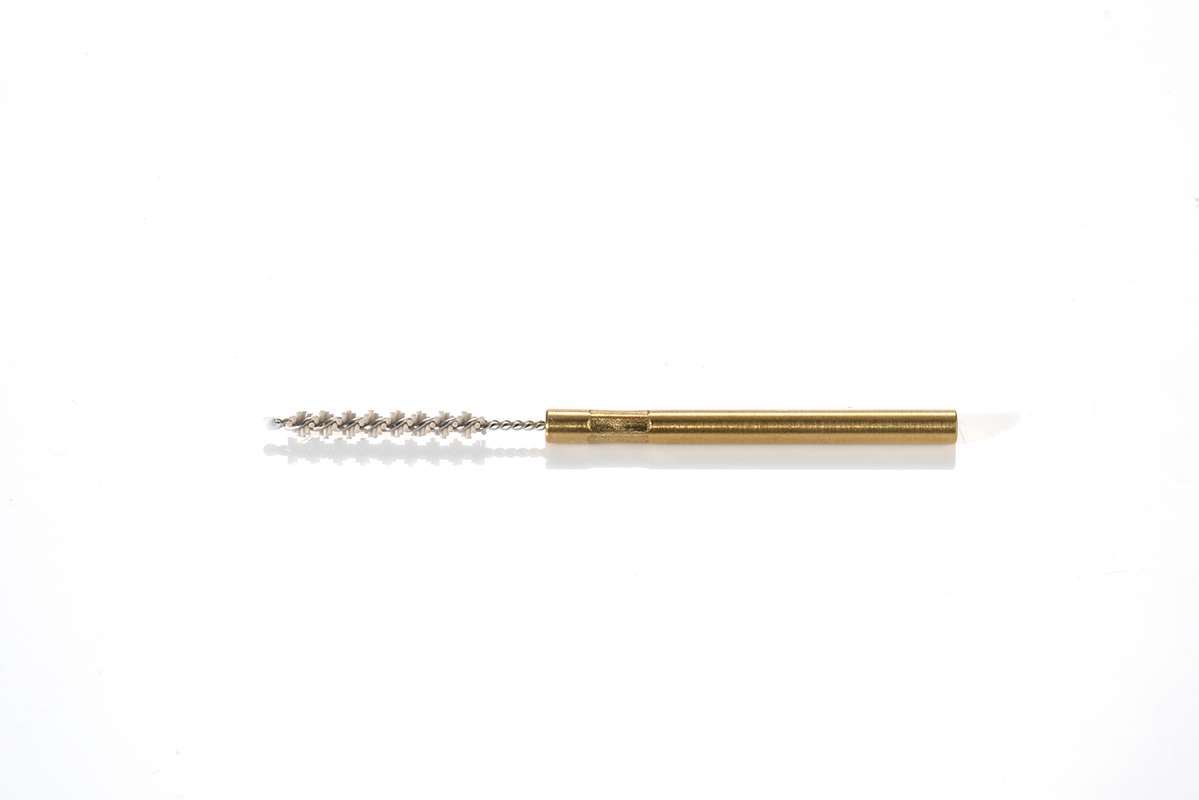

3 S3*35D2.2T18L60EA600 3*35 2.2 18 60 0.35 600# Aluminium oxide

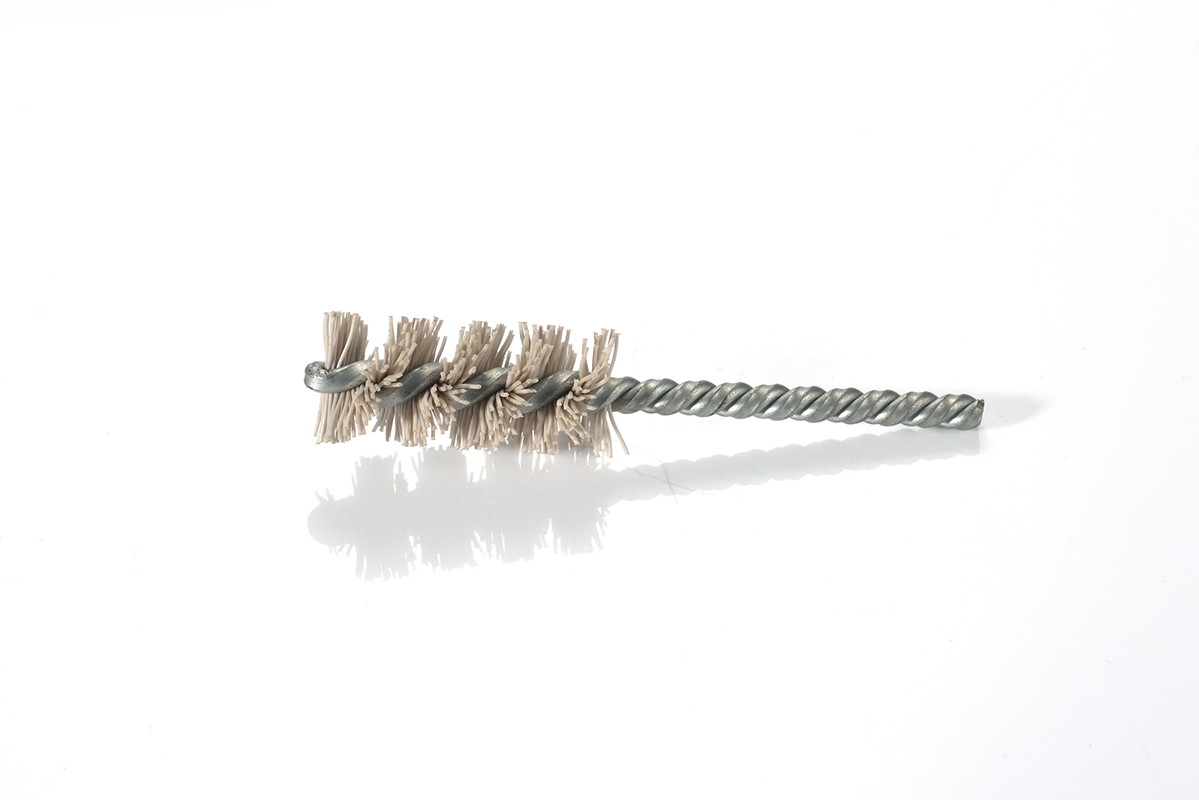

4 S3.8D16T30L70EA600 3.8 16 30 70 0.35 600# Aluminium oxide

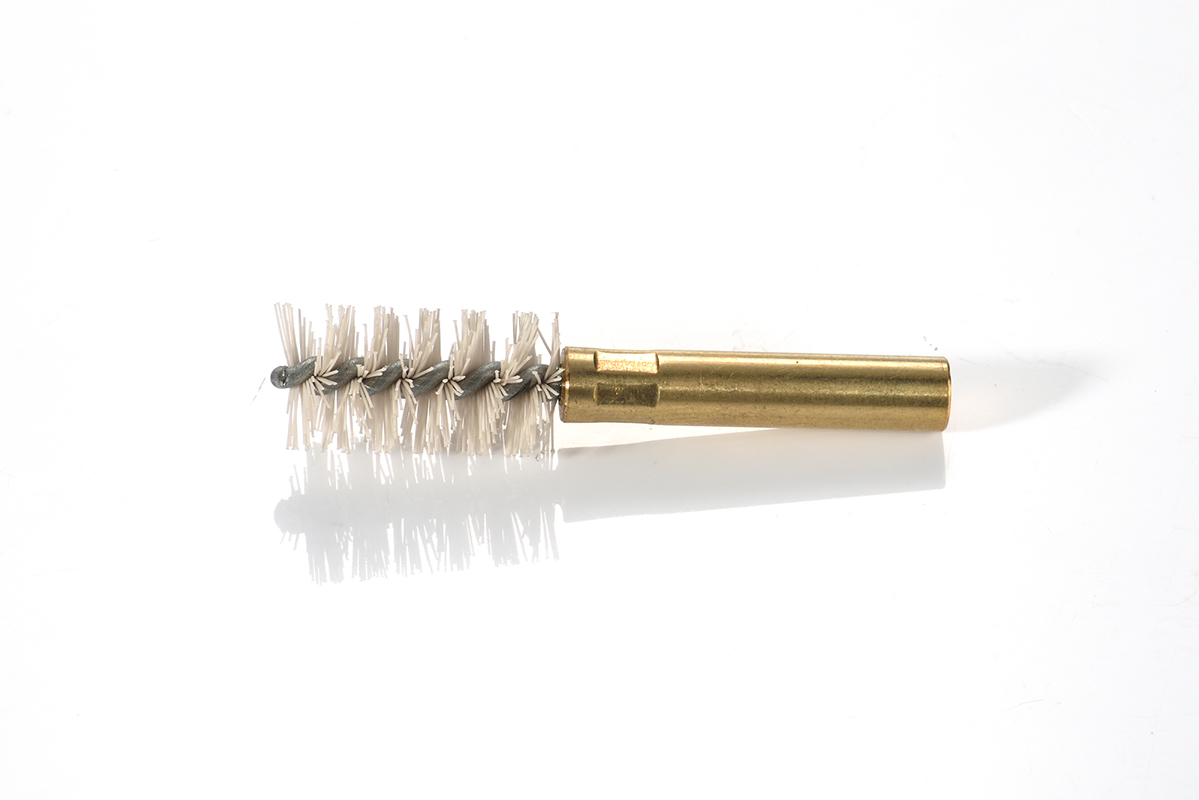

5 S6D9.5T30EA035 6 9.5 30 65 0.60 320# Aluminium oxide
