Good quality abrasive Cup brush with shank

Short Description:

We are manufacturer of Quality Cup Brushes that are widely used for cleaning purposes in several industrial machines. All our brushes are manufactured using high grade raw material and latest technology to ensure that these meet with international quality standards & norms. In addition to this, our brushes are available in the market in several sizes, designs and colors to fulfill the demands of customers. We also provide customization as per the specifications laid down by the customers.


Product Detail

Product Tags

Introduction:

We are manufacturer of Quality Cup Brushes that are widely used for cleaning purposes in several industrial machines. All our brushes are manufactured using high grade raw material and latest technology to ensure that these meet with international quality standards & norms. In addition to this, our brushes are available in the market in several sizes, designs and colors to fulfill the demands of customers. We also provide customization as per the specifications laid down by the customers.

Application:

Large Flat Area DeBurring
Rust removal
Sutface finishing
Polishing

Feature:

The abrasive nylon cup brush high density safe and easy light rust and paint remover and cleaner on ALL wet or dry applications like Metal, Steel, Stainless Steel, Wood, Aluminum.
offers design for coarse brushing surface preparation, heavy grout removal, polishing and scrubbing, this Nylon Cup Brush is gentle on all materials and made from top quality nylon for maximal user safety, gentle cleaning & extended brush use.
abrasive nylon brush safer to use than wire brushes, and will not spark, corrode, rust, shed, puncture skin.
Brush diameter : Standard 25 mm to 65mm and more
Bristle height: Standard 16mm, 25mm & 35mm and more
Raw material: Silicon, Green Silicon, Ceramic, Aluminum Oxide, Diamond
Grits: Standard 60,80,120,180,240,320,500,600,800 & 1000#
Wire diameter: 0.2mm,0.4mm, 0.6mm,0.8mm,1.0mm,1.1mm,1.2mm,1.5mm, etc.
It is applied to the inner cavity of the workpiece, with more complicated steps and the processing of the processing of deburring and burring edges of the metal parts in the raised part, especially suitable for deburring, polishing and finishing processes of the inner frame of notebook, tablet computer and mobile phone. Burr removal at hole edge. Suitable for manipulator or CNC. Can be designed and manufactured according to customer requirements.
Non-standard customized brushes are possible with all different diameter, bristle heights, raw-material, grits & combination with desired bristle height.
The choice of bristles depends on the substrate being machined, the amount of burrs and the final finishing requirements.

Model Parameters

No Products Shank diamter (mm) Brush diameter (mm) Wire height (mm) Wire diameter (mm) Grit Brush material Max. spend (RMP)

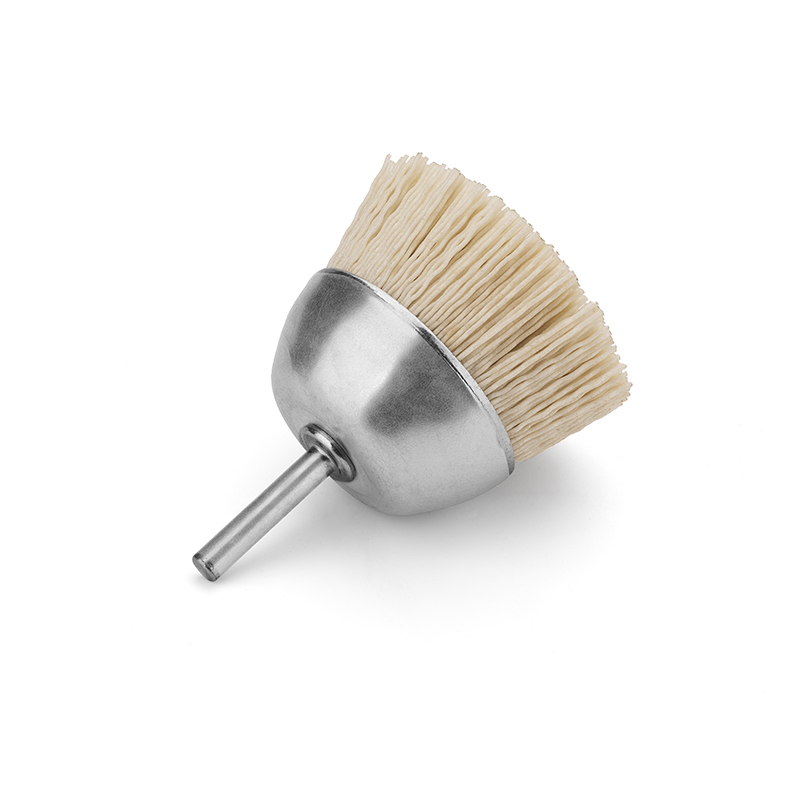

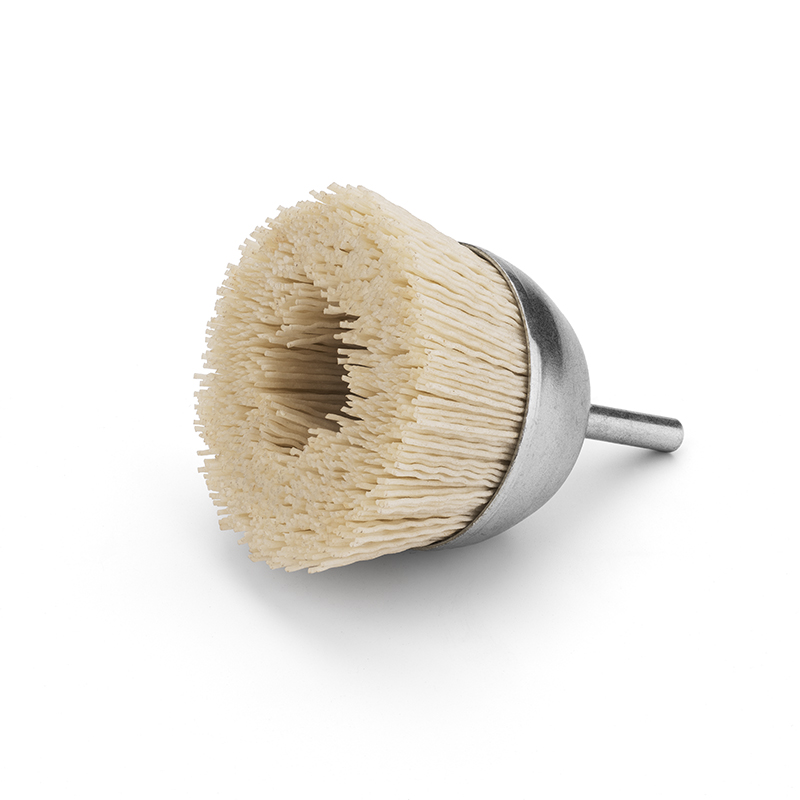

1 S6D65T25 6 65 25 0.70 240# Ceramics 6000

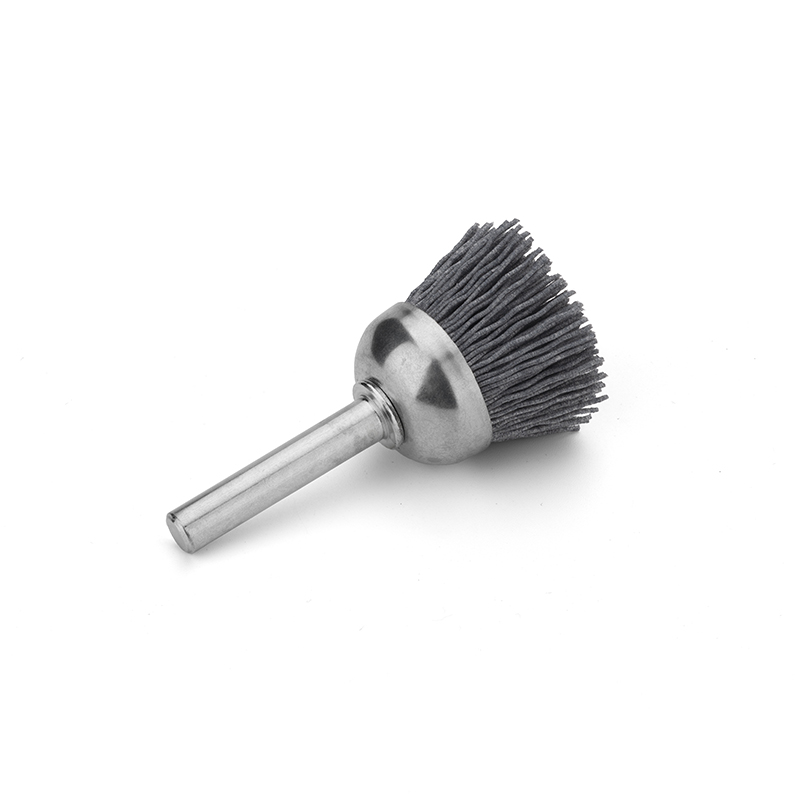

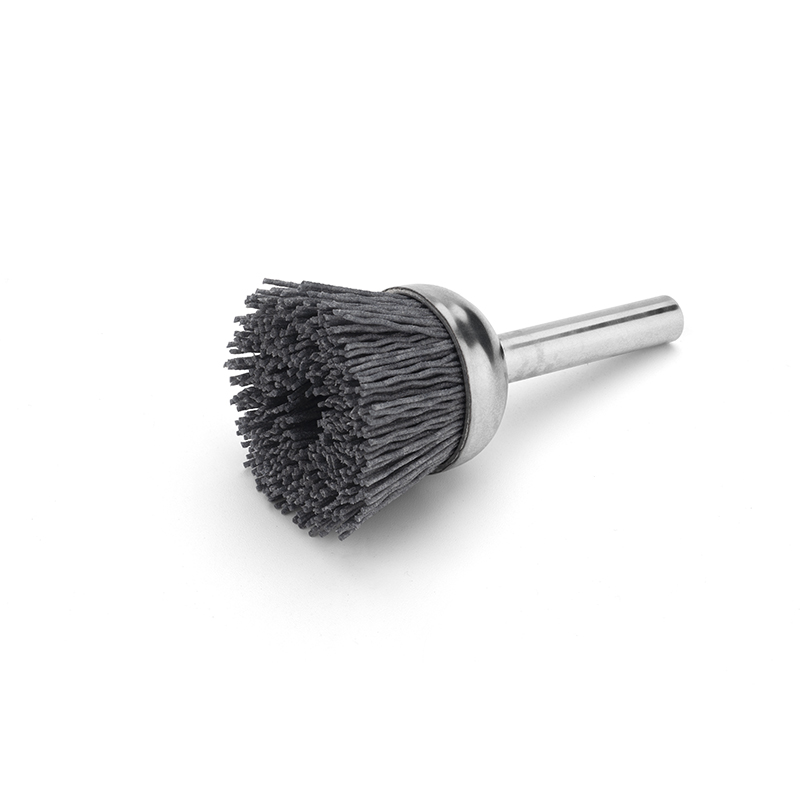

2 S6D25T16 6 25 16 0.60 320# Silicon carbide 6000
